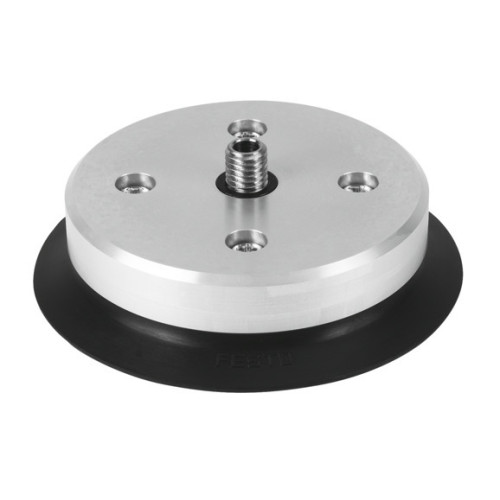

ESS-200-SN Suction cup complete

Manufacturer's No: ESS-200-SN     Manufacturer: Festo
ESS-200-SN Suction cup complete

Availability On Request

£203.31
  • Suction cup complete model: ESS-200-SN
  • Suction cup diameter: 200 mm
  • Min. workpiece radius: 680 mm
  • Nominal size: 10 mm
  • Suction cup volume: 245.454 cubic centimeters
  • Operating pressure range: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • Corrosion resistance class: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L

Read more

  • Ambient temperature range: -10°C to 70°C
  • Holding force at nominal operating pressure: 1610 N
  • Lateral force at nominal operating pressure: 850 N
  • Product weight: 1198 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M20x2
  • Colour: Black
  • Shore hardness: 50 +/- 5
  • Material: NBR suction cup, NBR screwed plug, Nickel-plated steel screwed plug, Steel galvanised and chrome-plated screwed plug
  • RoHS-compliant materials
  • Suitable for food use (refer to supplementary material information)


Product

Manufacturer Material ID -
ESS-200-SN
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£203.31
