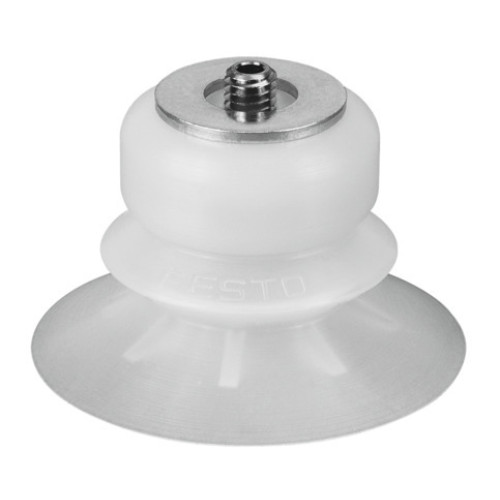

ESS-40-BS Suction cup complete

Manufacturer's No: ESS-40-BS     Manufacturer: Festo
ESS-40-BS Suction cup complete

Availability On Request

£17.78
  • Suction cup complete model: ESS-40-BS
  • Suction cup diameter: 40 mm
  • Height compensator for suction cup: 9.5 mm
  • Min. workpiece radius: 90 mm
  • Suction cup volume: 8.87 cubic centimeters
  • Nominal size: 3 mm
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure range: -0.95 bar to 0 bar (-13.775 psi to 0 psi)
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)

Read more

  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Suitable for use with food (refer to supplementary material information)
  • Ambient temperature range: -30°C to 180°C
  • Holding force at nominal operating pressure: 52.3 N
  • Lateral force at nominal operating pressure: 32.5 N
  • Product weight: 18.7 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M6
  • Colour: Transparent
  • Shore hardness: 50 +/- 5
  • Material: Nickel-plated wrought aluminium alloy, nickel-plated brass, steel (galvanised and chrome-plated)
  • RoHS-compliant materials
  • Suction cup material: VMQ (silicone)


Product

Manufacturer Material ID -
ESS-40-BS
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£17.78
