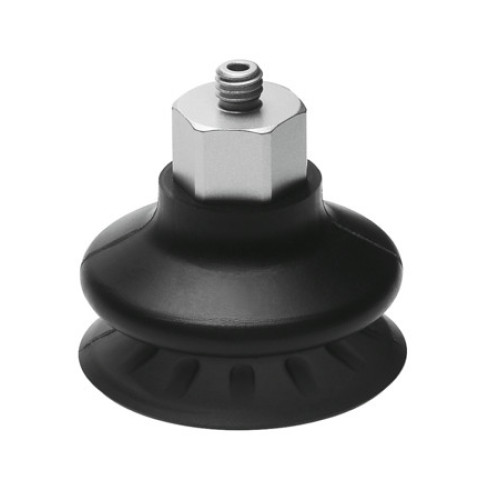

ESS-40-BT-M10 Suction cup complete

Manufacturer's No: ESS-40-BT-M10     Manufacturer: Festo
ESS-40-BT-M10 Suction cup complete

Availability On Request

£38.12
  • Suction cup complete model ESS-40-BT-M10
  • Suction cup diameter: 40 mm
  • Height compensator for suction-cup holder: 9 mm
  • Min. workpiece radius: 35 mm
  • Nominal size: 2.5 mm
  • Suction cup volume: 9.8 cubic centimeters
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure range: -0.95 to 0 bar
  • Nominal operating pressure: -0.7 bar
  • Operating medium: Atmospheric air (ISO 8573-1:2010)

Read more

  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature range: -10 to 80 degrees Celsius
  • Holding force at nominal operating pressure: 59 N
  • Lateral force at nominal operating pressure: 22 N
  • Product weight: 19 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M10
  • Colour: Red-brown
  • Shore hardness: 72 +/- 5
  • Material screwed plug: Wrought aluminium alloy
  • Material suction cup: Vulkollan
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESS-40-BT-M10
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£38.12
