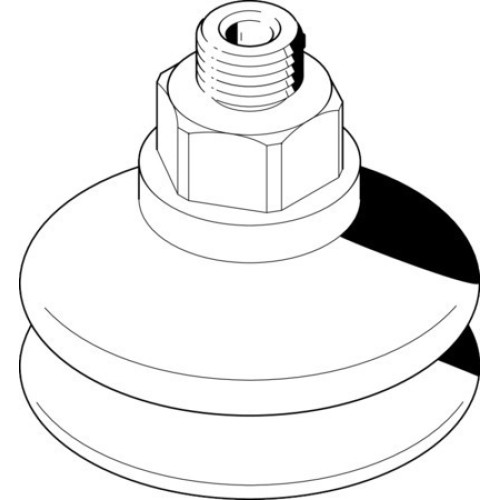

ESS-50-BT-M10 Suction cup complete

Manufacturer's No: ESS-50-BT-M10     Manufacturer: Festo
ESS-50-BT-M10 Suction cup complete

Availability On Request

£39.15
  • Suction cup complete model: ESS-50-BT-M10
  • Suction cup diameter: 50 mm
  • Suction cup volume: 17.6 cubic centimeters
  • Height compensator for suction-cup holder: 10 mm
  • Min. workpiece radius: 40 mm
  • Nominal size: 2.5 mm
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure range: -0.95 to 0 bar, nominal operating pressure: -0.7 bar
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature range: -10 to 80 degrees Celsius
  • Holding force at nominal operating pressure: 100 N
  • Lateral force at nominal operating pressure: 39 N
  • Product weight: 25 g
  • Type of mounting: Via vacuum port, Vacuum connection: M10
  • Colour: Red-brown, Shore hardness: 72 +/- 5
  • Material: Suction cup - Vulkollan, screwed plug - Wrought aluminium alloy (RoHS-compliant)


Product

Manufacturer Material ID -
ESS-50-BT-M10
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£39.15
