189352

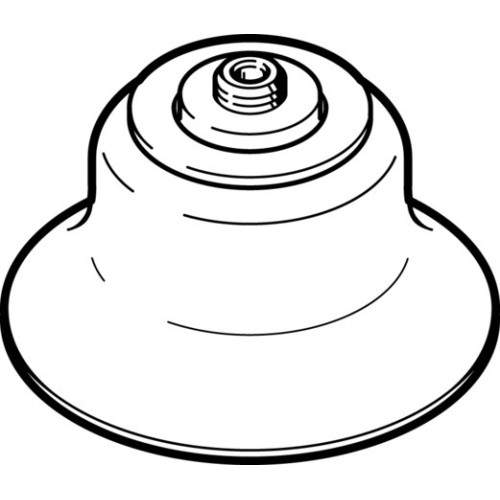

ESS-50-ES Suction cup complete

Manufacturer's No: ESS-50-ES     Manufacturer: Festo
ESS-50-ES Suction cup complete

Availability Back Order

£21.90
  • Suction cup complete model: ESS-50-ES
  • Min. workpiece radius: 100 mm
  • Nominal size: 3 mm
  • Suction cup diameter: 50 mm
  • Suction cup volume: 7.9 cubic centimeters
  • Suction cup shape: Round extra deep
  • Operating pressure range: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 (Low corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364 zone III
  • Ambient temperature range: -30°C to 180°C
  • Holding force at nominal operating pressure: 103.6 N
  • Lateral force at nominal operating pressure: 42.5 N
  • Product weight: 23.4 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M6
  • Colour: Transparent
  • Shore hardness: 50 +/- 5
  • Material: Nickel-plated wrought aluminium alloy, nickel-plated brass, steel (galvanised and chrome-plated)
  • RoHS-compliant materials
  • Suction cup material: VMQ (silicone)


Product

Manufacturer Material ID -
ESS-50-ES
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability Back Order

£21.90
