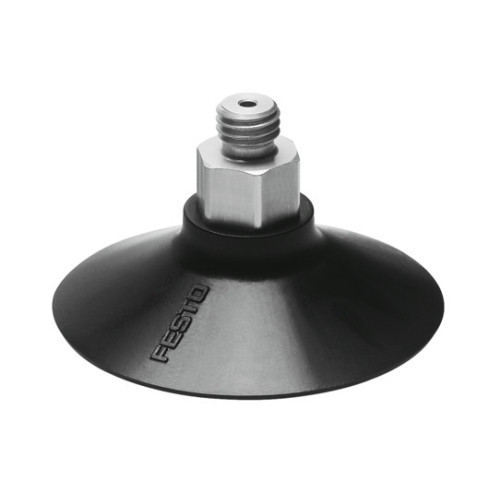

ESS-60-GT-M10 Suction cup complete

Manufacturer's No: ESS-60-GT-M10     Manufacturer: Festo
ESS-60-GT-M10 Suction cup complete

Availability On Request

£30.87
  • Suction cup complete model: ESS-60-GT-M10
  • Suction cup diameter: 60 mm
  • Suction cup volume: 11.3 cubic centimeters
  • Height compensator for suction-cup holder: 6 mm
  • Min. workpiece radius: 75 mm
  • Nominal size: 2.5 mm
  • Operating pressure: -0.95 bar to 0 bar
  • Nominal operating pressure: -0.7 bar
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)

Read more

  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature: -10°C to 80°C
  • Holding force at nominal operating pressure: 134 N
  • Lateral force at nominal operating pressure: 37 N
  • Product weight: 20 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M10
  • Colour: Red-brown
  • Shore hardness: 72 +/- 5
  • Material screwed plug: Wrought aluminium alloy
  • Material suction cup: Vulkollan
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESS-60-GT-M10
Net Weight -
0.03kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
