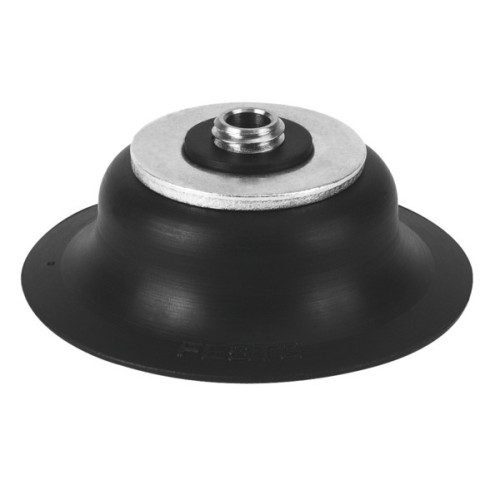

ESS-60-SN Suction cup complete

Manufacturer's No: ESS-60-SN     Manufacturer: Festo
ESS-60-SN Suction cup complete

Availability On Request

£20.20
  • Suction cup complete model ESS-60-SN
  • Min. workpiece radius: 350 mm
  • Nominal size: 6 mm
  • Suction cup diameter: 60 mm
  • Suction cup volume: 3.953 cubic centimeters
  • Position of connection: Top
  • Mounting position: Optional
  • Suction cup shape: Round, flat
  • Operating pressure range: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi

Read more

  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • Corrosion resistance class CRC: 1 (Low corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Suitable for use with food (refer to supplementary material information)
  • Ambient temperature range: -10°C to 70°C
  • Holding force at nominal operating pressure: 166.1 N
  • Lateral force at nominal operating pressure: 136 N
  • Product weight: 49 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: M10
  • Colour: Black
  • Shore hardness: 60 +/- 5
  • Material: Suction cup made of NBR
  • Material of screwed plug: Nickel-plated wrought aluminium alloy, nickel-plated steel, steel galvanised and chrome-plated
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESS-60-SN
Net Weight -
0.05kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£20.20
