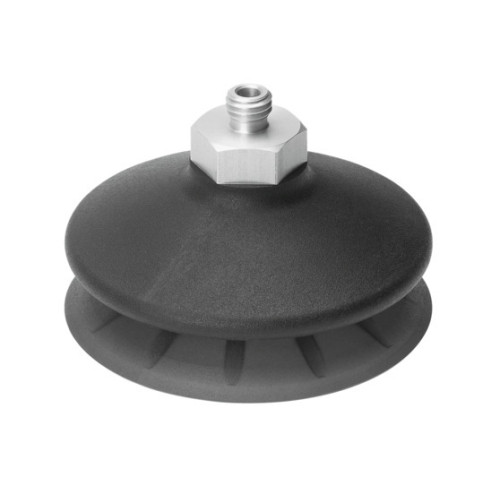

ESS-80-BT-G1/4 Suction cup complete

Manufacturer's No: ESS-80-BT-G1/4     Manufacturer: Festo
ESS-80-BT-G1/4 Suction cup complete

Availability On Request

£60.89
  • Suction cup complete model: ESS-80-BT-G1/4
  • Suction cup diameter: 80 mm
  • Suction cup volume: 59.1 cubic centimeters
  • Height compensator for suction-cup holder: 10.5 mm
  • Min. workpiece radius: 100 mm
  • Nominal size: 2.5 mm
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure range: -0.95 to 0 bar
  • Nominal operating pressure: -0.7 bar
  • Operating medium: Atmospheric air (ISO 8573-1:2010)

Read more

  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Ambient temperature range: -10°C to 80°C
  • Holding force at nominal operating pressure: 237 N
  • Lateral force at nominal operating pressure: 102 N
  • Product weight: 85.5 g
  • Type of mounting: Via vacuum port
  • Vacuum connection: G1/4
  • Colour: Red-brown
  • Shore hardness: 72 +/- 5
  • Material: Suction cup - Vulkollan, screwed plug - Wrought aluminium alloy
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESS-80-BT-G1/4
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£60.89
