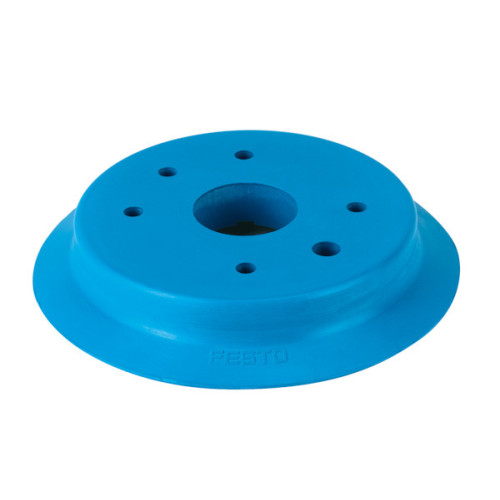

ESV-100-EU Suction cup without connector

Manufacturer's No: ESV-100-EU     Manufacturer: Festo
ESV-100-EU Suction cup without connector

Availability On Request

£57.44
  • Suction cup model: ESV-100-EU
  • Min. workpiece radius: 200 mm
  • Suction cup diameter: 100 mm
  • Suction cup volume: 79.812 cubic centimeters
  • Suction cup shape: Round extra deep
  • Position of connection: Top
  • Operating pressure: -0.095 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi)
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • LABS (PWIS) conformity: VDMA24364 zone III

Read more

  • Suitable for use with food (refer to supplementary material information)
  • Ambient temperature: -20°C to 60°C
  • Holding force at nominal operating pressure: 440.8 N
  • Product weight: 65 g
  • Colour: Blue
  • Shore hardness: 60 +/- 5
  • Material: PUR (RoHS-compliant)


Product

Manufacturer Material ID -
ESV-100-EU
Net Weight -
0.12kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
