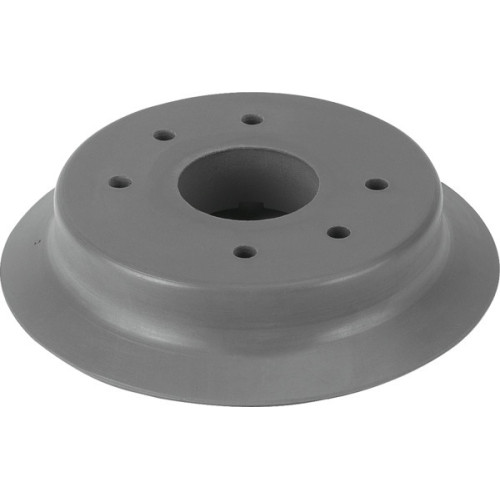

ESV-150-SF Suction cup without connector

Manufacturer's No: ESV-150-SF     Manufacturer: Festo
ESV-150-SF Suction cup without connector

Availability On Request

£419.04
  • Suction cup model: ESV-150-SF
  • Suction cup type: Without connector
  • Min. workpiece radius: 480 mm
  • Suction cup diameter: 150 mm
  • Suction cup volume: 173.826 cubic centimeters
  • Connection position: Top
  • Mounting position: Optional
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa, 0 kPa, -0.95 bar, 0 bar, -13.775 psi, 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi

Read more

  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Suitable for use with food: Refer to supplementary material information
  • Ambient temperature: -10°C to 200°C
  • Holding force at nominal operating pressure: 900 N
  • Product weight: 361 g
  • Color: Grey
  • Shore hardness: 60 +/- 5
  • RoHS-compliant material suction cup: FPM


Product

Manufacturer Material ID -
ESV-150-SF
Net Weight -
0.60kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
