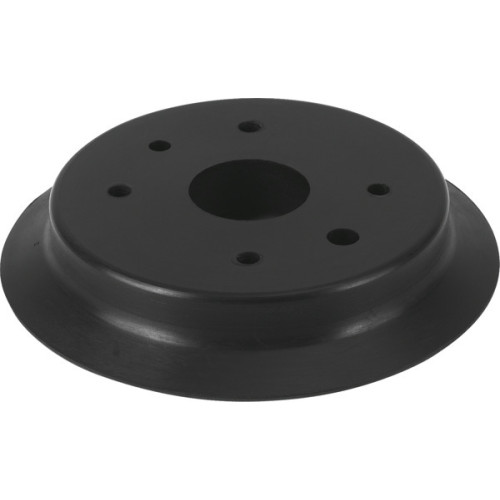

ESV-150-SN Suction cup without connector

Manufacturer's No: ESV-150-SN     Manufacturer: Festo
ESV-150-SN Suction cup without connector

Availability On Request

£81.53
  • Suction cup model: ESV-150-SN
  • Min. workpiece radius: 480 mm
  • Suction cup diameter: 150 mm
  • Suction cup volume: 173.826 cubic cm
  • Position of connection: Top
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • LABS (PWIS) conformity: VDMA24364-A1-L

Read more

  • Ambient temperature: -10°C to 70°C
  • Holding force at nominal operating pressure: 900 N
  • Product weight: 361 g
  • Colour: Black
  • Shore hardness: 50 +/- 5
  • Material suction cup: NBR
  • RoHS-compliant materials
  • Suitable for use with food (refer to supplementary material information)


Product

Manufacturer Material ID -
ESV-150-SN
Net Weight -
0.48kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
