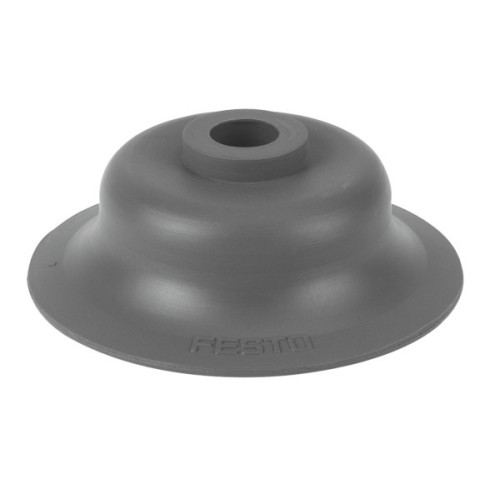

ESV-20-SF Suction cup without connector

Manufacturer's No: ESV-20-SF     Manufacturer: Festo
ESV-20-SF Suction cup without connector

Availability On Request

£25.34
  • Suction cup model: ESV-20-SF
  • Suction cup diameter: 20mm
  • Suction cup volume: 0.318 cubic centimeters
  • Connection position: Top
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi)
  • Nominal operating pressure: -0.07 kPa (-0.7 bar, -10.15 psi)
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Suitable for food use (refer to supplementary material)

Read more

  • Ambient temperature: -10°C to 200°C
  • Holding force at nominal operating pressure: 16.3 N
  • Product weight: 1.6 g
  • Color: Grey
  • Shore hardness: 60 +/- 5
  • RoHS-compliant materials
  • Suction cup material: FPM


Product

Manufacturer Material ID -
ESV-20-SF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
