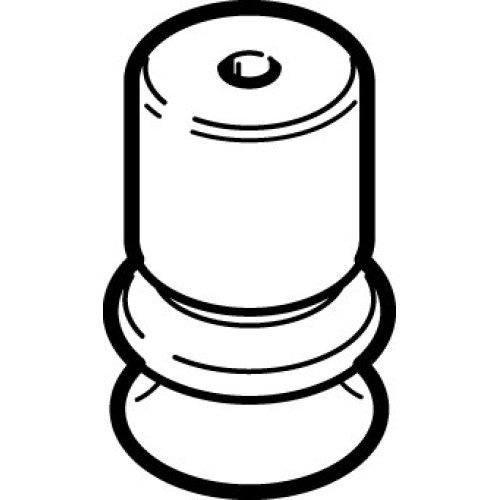

ESV-30-BU Suction cup without connector

Manufacturer's No: ESV-30-BU     Manufacturer: Festo
ESV-30-BU Suction cup without connector

Availability On Request

£14.74
  • Suction cup model: ESV-30-BU
  • Height compensator: 8 mm
  • Min. workpiece radius: 80 mm
  • Suction cup diameter: 30 mm
  • Suction cup volume: 4.07 cubic cm
  • Suction cup shape: Round bellows 1.5 convolutions
  • Operating pressure: -0.095 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi)
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • LABS (PWIS) conformity: VDMA24364 zone III

Read more

  • Ambient temperature: -20°C to 60°C
  • Holding force at nominal operating pressure: 26.2 N
  • Product weight: 3.6 g
  • Colour: Blue
  • Shore hardness: 60 +/- 5
  • Material: RoHS-compliant PUR
  • Suitable for food use (refer to supplementary material information)


Product

Manufacturer Material ID -
ESV-30-BU
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
