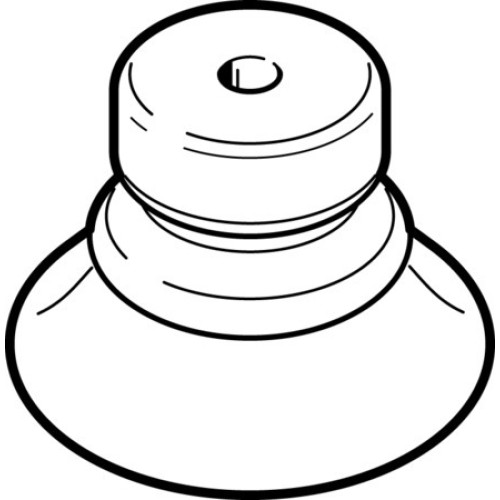

ESV-40-BN Suction cup without connector

Manufacturer's No: ESV-40-BN     Manufacturer: Festo
ESV-40-BN Suction cup without connector

Availability On Request

£11.36
  • Suction cup model: ESV-40-BN
  • Suction cup diameter: 40mm
  • Height compensator: 9.5mm
  • Min. workpiece radius: 90mm
  • Suction cup volume: 11.699 cubic centimeters
  • Suction cup shape: Round bellows 1.5 convolutions
  • Operating pressure: -0.095 kPa to 0 kPa, -0.95 bar to 0 bar, -13.775 psi to 0 psi
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air (ISO 8573-1:2010)
  • LABS (PWIS) conformity: VDMA24364-A1-L

Read more

  • Ambient temperature: -10°C to 70°C
  • Holding force at nominal operating pressure: 52.3 N
  • Product weight: 9.8 g
  • Color: Black
  • Shore hardness: 50 +/- 5
  • RoHS-compliant materials
  • Material: NBR
  • Suitable for food use (refer to supplementary material information)


Product

Manufacturer Material ID -
ESV-40-BN
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
