526006

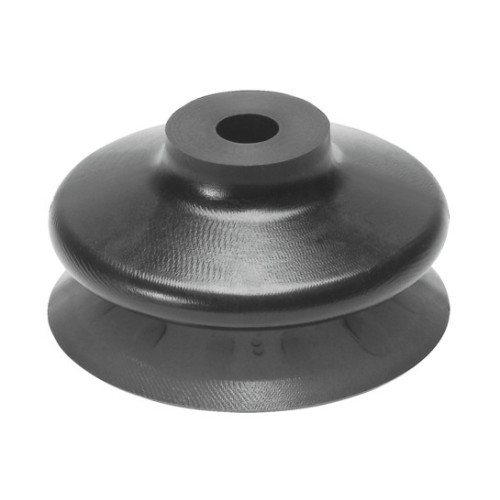

ESV-40-BT Suction cup without connector

Manufacturer's No: ESV-40-BT     Manufacturer: Festo
ESV-40-BT Suction cup without connector

Availability On Request

£30.36
  • Suction cup model: ESV-40-BT
  • Suction cup diameter: 40mm
  • Height compensator for suction-cup holder: 9mm
  • Min. workpiece radius: 35mm
  • Suction cup volume: 9.8 cubic centimeters
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure: -0.95 bar to 0 bar
  • Nominal operating pressure: -0.7 bar
  • Breakaway force at 70% vacuum: 59N
  • Holding force at nominal operating pressure: 59N

Read more

  • Lateral force at nominal operating pressure: 22N
  • Product weight: 10.5g
  • Type of mounting: Via vacuum port
  • Colour: Red-brown
  • Shore hardness: 72 +/- 5
  • Material suction cup: Vulkollan
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Note on materials: RoHS-compliant
  • Ambient temperature: -10°C to 80°C


Product

Manufacturer Material ID -
ESV-40-BT
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£30.36
