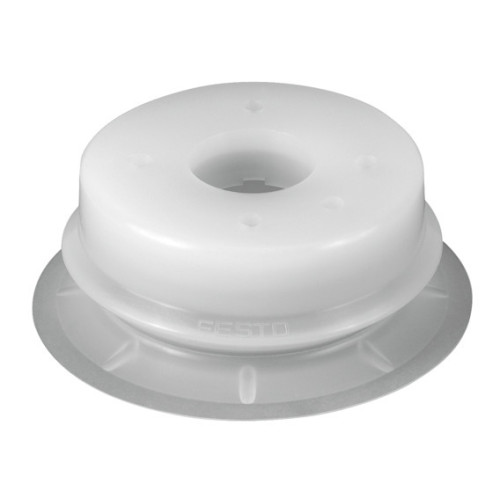

ESV-80-BS Suction cup without connector

Manufacturer's No: ESV-80-BS     Manufacturer: Festo
ESV-80-BS Suction cup without connector

Availability On Request

£58.50
  • Suction cup model: ESV-80-BS
  • Suction cup type: Without connector
  • Height compensator: 10 mm
  • Min. workpiece radius: 430 mm
  • Suction cup diameter: 80 mm
  • Suction cup volume: 63.9 cubic centimeters
  • Connection position: Top
  • Mounting position: Optional
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure: -0.095 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi)

Read more

  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • LABS (PWIS) conformity: VDMA24364 zone III
  • Suitable for use with food (refer to supplementary material information)
  • Ambient temperature: -30°C to 180°C
  • Holding force at nominal operating pressure: 213.6 N
  • Product weight: 39 g
  • Color: Transparent
  • Shore hardness: 50 +/- 5
  • Material: VMQ (silicone)
  • RoHS-compliant materials


Product

Manufacturer Material ID -
ESV-80-BS
Net Weight -
0.08kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
Festo

Availability On Request

£58.50
