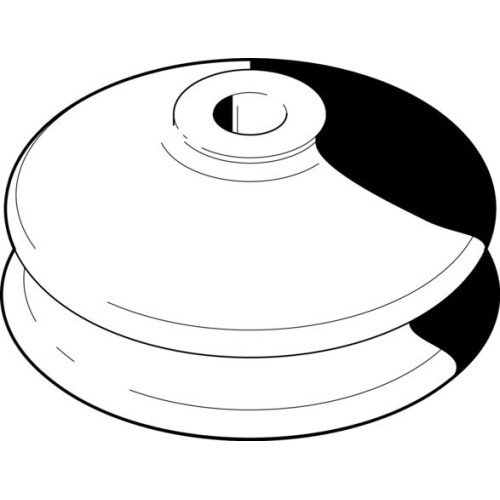

ESV-80-BT Suction cup without connector

Manufacturer's No: ESV-80-BT     Manufacturer: Festo
ESV-80-BT Suction cup without connector

Availability On Request

£51.75
  • Suction cup model: ESV-80-BT
  • Suction cup diameter: 80 mm
  • Height compensator for suction-cup holder: 10.5 mm
  • Min. workpiece radius: 100 mm
  • Suction cup volume: 59.1 cubic centimeters
  • Suction cup shape: Round bellows with 1.5 convolutions
  • Operating pressure: -0.95 bar to 0 bar
  • Nominal operating pressure: -0.7 bar
  • Breakaway force at 70% vacuum: 237 N
  • Holding force at nominal operating pressure: 237 N

Read more

  • Lateral force at nominal operating pressure: 102 N
  • Product weight: 57.2 g
  • Type of mounting: Via vacuum port
  • Design: Bellows
  • LABS (PWIS) conformity: VDMA24364-A1-L
  • Material suction cup: Vulkollan
  • Colour: Red-brown
  • Shore hardness: 72 +/- 5
  • Operating temperature range: -10°C to 80°C
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
ESV-80-BT
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£51.75
