526004

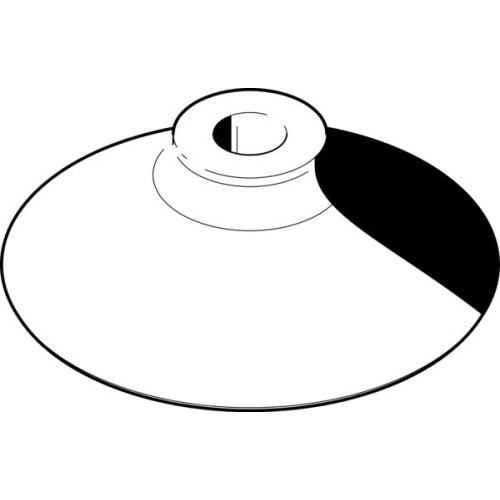

ESV-80-GT Suction cup without connector

Manufacturer's No: ESV-80-GT     Manufacturer: Festo
ESV-80-GT Suction cup without connector

Availability On Request

£26.72
  • Suction cup model: ESV-80-GT
  • Suction cup diameter: 80 mm
  • Suction cup volume: 28.6 cubic centimeters
  • Height compensator for suction-cup holder: 7.5 mm
  • Min. workpiece radius: 100 mm
  • Suction cup shape: Round deep
  • Design: Round, bell-shaped
  • Operating pressure: -0.95 bar to 0 bar
  • Nominal operating pressure: -0.7 bar
  • Operating medium: Atmospheric air (ISO 8573-1:2010)

Read more

  • Breakaway force at 70% vacuum: 245 N
  • Holding force at nominal operating pressure: 245 N
  • Lateral force at nominal operating pressure: 99 N
  • Product weight: 30.9 g
  • Type of mounting: Via vacuum port
  • Colour: Red-brown
  • Shore hardness: 72 +/- 5
  • Material: Vulkollan (RoHS-compliant)
  • Ambient temperature: -10°C to 80°C


Product

Manufacturer Material ID -
ESV-80-GT
Net Weight -
0.04kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£26.72
