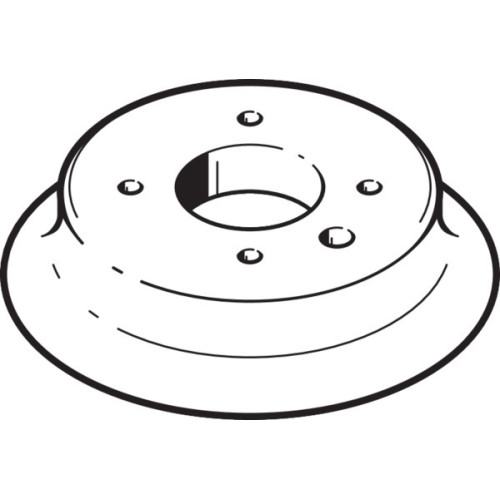

ESV-80-SS Suction cup without connector

Manufacturer's No: ESV-80-SS     Manufacturer: Festo
ESV-80-SS Suction cup without connector

Availability On Request

£30.87
  • Suction cup model: ESV-80-SS
  • Min. workpiece radius: 400 mm
  • Suction cup diameter: 80 mm
  • Suction cup volume: 19.312 cubic centimeters
  • Position of connection: Top
  • Suction cup shape: Round, flat
  • Operating pressure: -0.095 kPa to 0 kPa (-0.95 bar to 0 bar, -13.775 psi to 0 psi)
  • Nominal operating pressure: -0.07 kPa, -0.7 bar, -10.15 psi
  • Operating medium: Atmospheric air based on ISO 8573-1:2010
  • LABS (PWIS) conformity: VDMA24364 zone III

Read more

  • Ambient temperature: -30°C to 180°C
  • Holding force at nominal operating pressure: 309.7 N
  • Product weight: 33 g
  • Material suction cup: VMQ (silicone)
  • Colour: Transparent
  • Shore hardness: 50 +/- 5
  • RoHS-compliant materials
  • Suitable for use with food (refer to supplementary material information)


Product

Manufacturer Material ID -
ESV-80-SS
Net Weight -
0.07kg

Additional Product Information

Commodity Code -
84799070
Country of Origin -
JP
UNSPSC -
30102206
