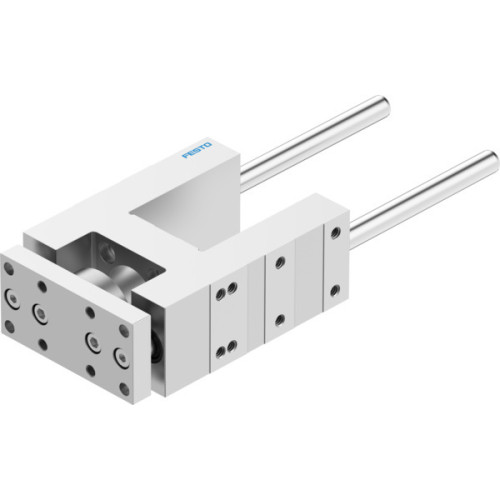

FENG-32-100-KF Guide unit

Manufacturer's No: FENG-32-100-KF     Manufacturer: Festo
FENG-32-100-KF Guide unit

Availability On Request

£547.72
  • Guide unit FENG-32-100-KF with recirculating ball bearing guide
  • Size: 32, Stroke: 100 mm
  • Mounting position: Any
  • Max. forces: Fy 750 N, Fz 750 N
  • Max. static forces: Fy 1020 N, Fz 1020 N
  • Max. moments: Mx 28 Nm, My 34 Nm, Mz 34 Nm
  • Max. static torques: Mx 38 Nm, My 46 Nm, Mz 46 Nm
  • Displacement force: 15 N
  • Product weight: 1710 g
  • Type of mounting: Via female thread

Read more

  • Materials: Guide component - Tempered steel, Housing - Anodised wrought aluminium alloy, Yoke plate - Anodised wrought aluminium alloy
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -20°C to 80°C
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
FENG-32-100-KF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£547.72
