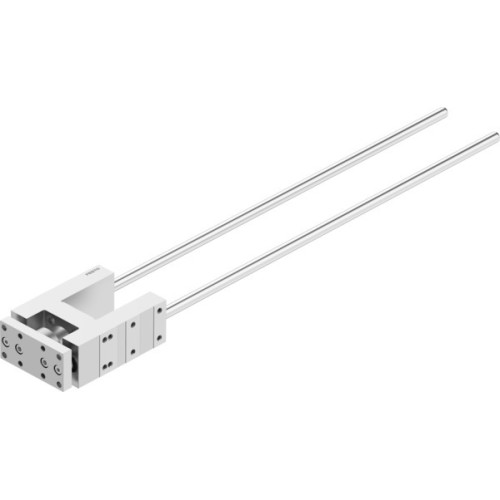

FENG-32-500-KF Guide unit

Manufacturer's No: FENG-32-500-KF     Manufacturer: Festo
FENG-32-500-KF Guide unit

Availability On Request

£629.99
  • Guide unit FENG-32-500-KF with recirculating ball bearing guide
  • Size: 32, Stroke: 500 mm
  • Mounting position: Any
  • Design: Guidance
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -20°C to 80°C
  • Max. force Fy: 750 N, Max. force Fy static: 1020 N
  • Max. force Fz: 750 N, Max. force Fz static: 1020 N
  • Max. moment Mx: 28 Nm, Max. torque Mx static: 38 Nm
  • Max. moment My: 34 Nm, Max. torque My static: 46 Nm

Read more

  • Max. moment Mz: 34 Nm, Max. torque Mz static: 46 Nm
  • Displacement force: 15 N
  • Product weight: 2430 g
  • Type of mounting: Via female thread
  • RoHS-compliant materials
  • Material guide component: Tempered steel
  • Material housing: Anodised wrought aluminium alloy
  • Material yoke plate: Anodised wrought aluminium alloy


Product

Manufacturer Material ID -
FENG-32-500-KF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£629.99
