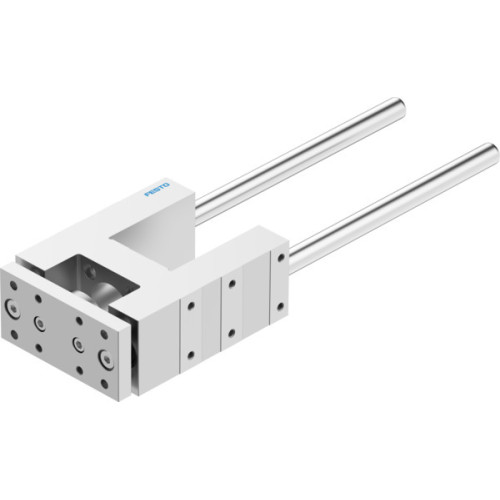

FENG-40-200-KF Guide unit

Manufacturer's No: FENG-40-200-KF     Manufacturer: Festo
FENG-40-200-KF Guide unit

Availability On Request

£739.58
  • Size: 40
  • Stroke: 200 mm
  • Guide: Recirculating ball bearing guide
  • Max. force Fy: 1000 N (static: 1260 N)
  • Max. force Fz: 1000 N (static: 1260 N)
  • Max. moment Mx: 44 Nm (static: 55 Nm)
  • Max. moment My: 52 Nm (static: 65 Nm)
  • Max. moment Mz: 52 Nm (static: 65 Nm)
  • Displacement force: 15 N
  • Product weight: 3010 g

Read more

  • Mounting: Via female thread
  • Material guide component: Tempered steel
  • Material housing: Anodised wrought aluminium alloy
  • Material yoke plate: Anodised wrought aluminium alloy
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: -20°C to 80°C
  • Design structure: Guidance
  • Assembly position: Any
  • Note on materials: RoHS-compliant


Product

Manufacturer Material ID -
FENG-40-200-KF
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
30102206
Festo

Availability On Request

£739.58
