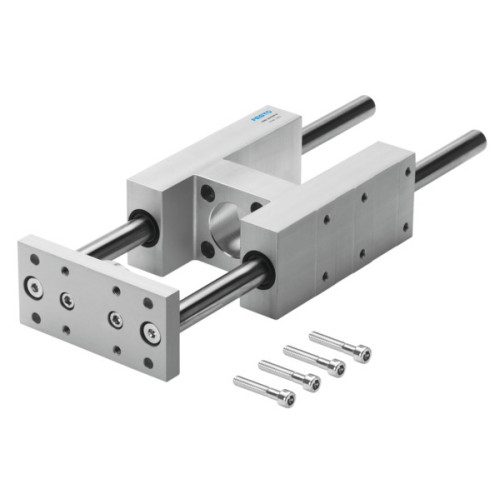

FENG-63-100-KF Guide unit

Manufacturer's No: FENG-63-100-KF     Manufacturer: Festo
FENG-63-100-KF Guide unit

Availability Back Order

£899.72
  • Guide unit FENG-63-100-KF with recirculating ball bearing guide
  • Size: 63, Stroke: 100 mm
  • Provides protection against rotation and high guidance accuracy
  • Max. force Fy: 1260 N, Max. force Fz: 1260 N
  • Max. moment Mx: 75 Nm, Max. moment My: 90 Nm, Max. moment Mz: 90 Nm
  • Max. force Fy static: 1600 N, Max. force Fz static: 1600 N
  • Max. torque Mx static: 95 Nm, Max. torque My static: 115 Nm, Max. torque Mz static: 115 Nm
  • Displacement force: 15 N
  • Product weight: 5900 g
  • Mounting position: Any

Read more

  • Type of mounting: Via female thread
  • Material guide component: Tempered steel
  • Material housing and yoke plate: Anodised wrought aluminium alloy
  • Ambient temperature: -20°C to 80°C
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • RoHS-compliant materials


Product

Manufacturer Material ID -
FENG-63-100-KF
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84821090
Country of Origin -
HU
UNSPSC -
30102206
