2TLA050304R0002

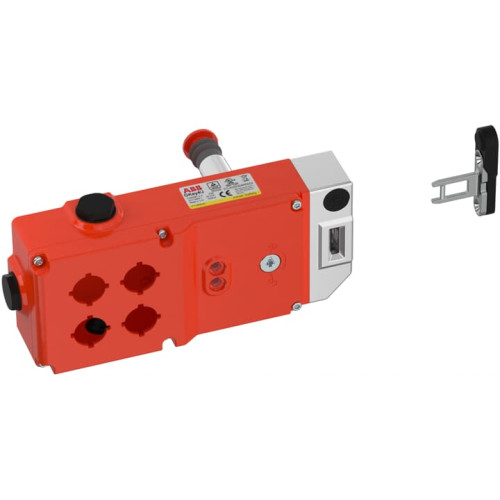

GKey4 RU Lock, complete

Manufacturer's No: GKEY4 RU     Manufacturer: ABB
GKey4 RU Lock, complete

Availability On Request

£825.36
  • GKey4 RU Lock with 4 positions for pilot devices
  • Die-cast housing suitable for hinged and sliding doors
  • Interlocking function up to PL e/SIL 3 with high-level coding
  • Requires power to unlock for enhanced safety
  • Rear escape release button and manual unlocking feature
  • Includes mechanical tongue actuator, RFID actuator, entry cover, and screw bit


Product

Manufacturer Material ID -
GKEY4 RU
Net Weight -
1.60kg

Additional Product Information

Commodity Code -
8301409000
UNSPSC -
46171519

Technical Specification

Assembly arrangement -
Door part
Model -
Safety lock opener
Current type -
DC
Opening direction (according to DIN) -
Left/right
With feedback signal -
Voltage -
24 Volt
Performance level acc. to EN ISO 13849-1 -
Level e
SIL according to EN 62061 -
3
Ambient temperature during operating -
-25 Degrees celsius
Clamping force -
3000 Newton
Coating housing -
Powder coated
Construction type housing -
Special construction
Degree of protection (IP rating) -
IP65
Degree of protection (NEMA) -
1
Height of sensor -
103 Millimetre
Interface type -
Other
Length of sensor -
154 Millimetre
Number of contacts as normally closed contact -
2
Number of contacts as normally open contact -
4
Rated control supply voltage magnet drive at DC -
24 Volt
Rated operation current Ie at AC-15, 125 V -
3 Ampere
Rated operation current Ie at AC-15, 230 V -
3 Ampere
Rated operation current Ie at AC-15, 24 V -
3 Ampere
Rated operation current Ie at DC-13, 24 V -
0.2 Ampere
Suitable for safety functions -
Type of electric connection -
Other
Type of guard locking -
Operating current principle
Type of interface for safety communication -
Other
Type of switching contact -
Slow-action switch
Width sensor -
231 Millimetre
With auxiliary release -
With escape unlocking -
With status indication -
ABB

Availability On Request

£825.36
