Principle of physics: Optical; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Swi

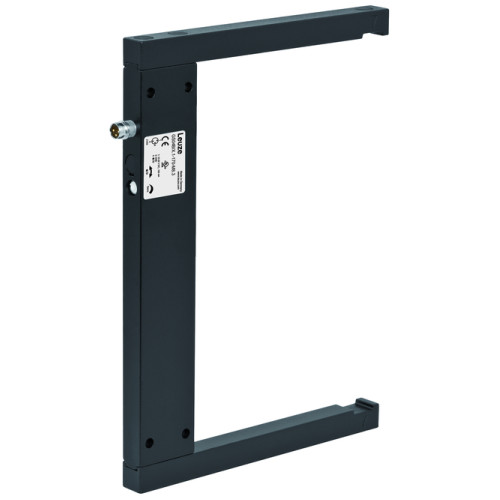

Manufacturer's No: GS04B/P.1-170-M8.3     Manufacturer: Leuze
Principle of physics: Optical; Light source: LED, Red; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output: Transistor, PNP, Light/dark reversible; Switching freq

Availability On Request

£312.00
  • Principle of physics: Optical
  • Light source: LED, Red
  • Supply voltage: 10-30 V DC
  • Digital switching outputs: 1 piece
  • Switching output: Transistor, PNP, Light/dark reversible
  • Switching frequency: 5,000 Hz
  • Connection: Connector, M8, 3-pin
  • Mouth width: 170 mm
  • Mouth depth: 110 mm
  • Dimensions: 12 mm x 194 mm x 140 mm

Read more

  • Housing material: Metal, Diecast zinc

Accessories



Product

Manufacturer Material ID -
GS04B/P.1-170-M8.3
Net Weight -
0.49kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Fork depth -
110 Millimetre
Fork width -
170 Millimetre
Height of sensor -
194 Millimetre
Housing material -
Metal
Length of sensor -
140 Millimetre
Material of cable sheath -
Other
Material of optical surface -
Glass
Max. switching distance -
170 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
170 Millimetre
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
170 Millimetre
Reaction time -
0.1 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Manual adjustment
Switching frequency -
5000 Hertz
Transmission range of the safety field -
0.17 Metre
Type of electric connection -
Connector M8
Type of light -
Polarity free red light
Type of switching output -
PNP
Voltage type -
DC
Wavelength of the sensor -
660 Nanometre
Width sensor -
12 Millimetre
Leuze

Availability On Request

£312.00
