50146198

Principle of physics: Optical; Light source: Laser, Red; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); S

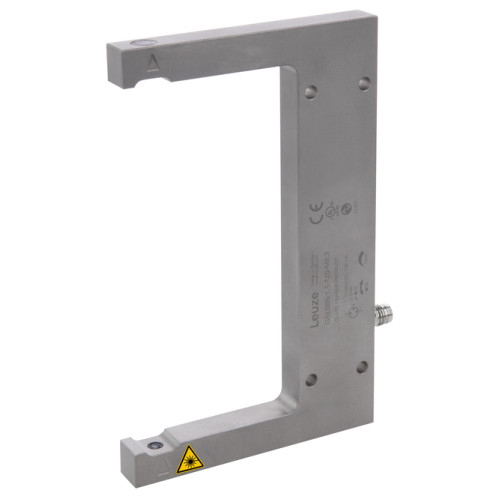

Manufacturer's No: GSL08B/1.1-120-M8.3     Manufacturer: Leuze
Principle of physics: Optical; Light source: Laser, Red; Supply voltage: 10 ... 30 V, DC; Digital switching outputs: 1 Piece(s); Switching output: Transistor, Push-pull, IO-Link / light switching (NP

Availability Back Order

£473.00
  • Principle of physics: Optical
  • Light source: Red Laser
  • Supply voltage: 10-30 V DC
  • Digital switching outputs: 1 Piece
  • Switching output: Transistor, Push-pull, IO-Link (NPN for light switching, PNP for dark switching)
  • Switching frequency: 5,000 Hz
  • Interface: IO-Link
  • Connection: M8 3-pin Connector
  • Mouth width: 120 mm
  • Mouth depth: 60 mm

Read more

  • Dimensions: 12 mm x 144 mm x 90 mm

Accessories



Product

Manufacturer Material ID -
GSL08B/1.1-120-M8.3
Net Weight -
0.33kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
39121528

Technical Specification

Thumbnail of product picture -
Ambient temperature -
-25 Degrees celsius
Construction type housing -
Cuboid
Degree of protection (IP rating) -
IP67
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Fork depth -
60 Millimetre
Fork width -
120 Millimetre
Height of sensor -
144 Millimetre
Housing material -
Metal
Laser protection class -
Class 1
Length of sensor -
90 Millimetre
Material of cable sheath -
Other
Material of optical surface -
Glass
Max. switching distance -
120 Millimetre
Maximum output current -
100 Milliampere
Min. reflector distance -
120 Millimetre
Number of contact energized outputs with signalling function -
0
Number of protected contact energized outputs -
0
Number of protected semiconductor outputs -
0
Number of semiconductor outputs with signalling function -
1
Operation agent-safety class -
Safety class 3
Rated control supply voltage at DC -
10 Volt
Rated switching distance -
120 Millimetre
Reaction time -
0.1 Millisecond
Sensing mode -
Light-/dark switching
Setting procedure -
Manual adjustment
Switching frequency -
5000 Hertz
Transmission range of the safety field -
0.12 Metre
Type of electric connection -
Connector M8
Type of light -
Laser diode, red light
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Width sensor -
12 Millimetre
Leuze

Availability Back Order

£473.00
