50142875

Principle of physics: Ultrasonics; Application: Detection of transparent labels, Detection of non-transparent labels; Label width,

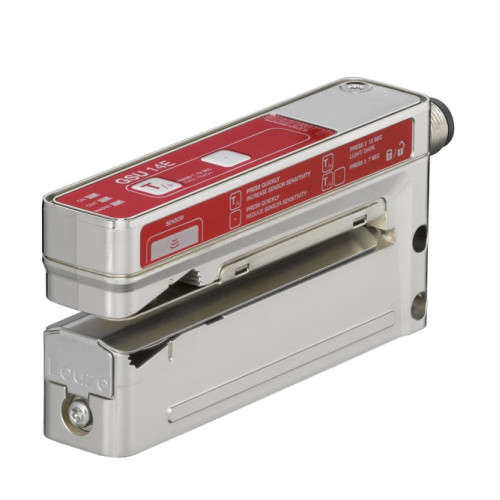

Manufacturer's No: GSU14E/LGT.3-M12     Manufacturer: Leuze
Principle of physics: Ultrasonics; Application: Detection of transparent labels, Detection of non-transparent labels; Label width, min.: 4 mm; Label gap, min.: 2 mm; Medium: Transparent and not trans

Availability On Request

£543.00
  • Principle of physics: Ultrasonics
  • Application: Detection of transparent and non-transparent labels
  • Label width, min.: 4 mm
  • Label gap, min.: 2 mm
  • Medium: Transparent and non-transparent labels
  • Special version: Teach input, Manual fine tuning of switching threshold
  • Supply voltage: 18-30 V DC
  • Teach inputs: 1 Piece
  • Digital switching outputs: 2 Pieces
  • Switching output 1: Transistor, Push-pull, IO-Link / PNP light switching (gap), NPN dark switching (label)

Read more

  • Switching output 2: Transistor, Push-pull, NPN light switching (gap), PNP dark switching (label)
  • Switching frequency: 2,000 Hz
  • Interface: IO-Link
  • Connection: Connector, M12, 5-pin
  • Plug outlet: Horizontal (parallel to belt movement)
  • Mouth width: 4 mm
  • Mouth depth: 80 mm
  • Dimensions: 22 mm x 46.9 mm x 96 mm
  • Housing material: Metal, Diecast zinc, galvanic nickel coating
  • Operational controls: Control buttons

Accessories

Spare part



Product

Manufacturer Material ID -
GSU14E/LGT.3-M12
Net Weight -
0.30kg

Additional Product Information

Commodity Code -
85365019
Country of Origin -
DE
UNSPSC -
41111926

Technical Specification

Thumbnail of product picture -
Ambient temperature -
60 Degrees celsius
Construction type housing -
Special construction
Explosion safety category for dust -
None
Explosion safety category for gas -
None
Height of sensor -
46.9 Millimetre
Housing material -
Aluminium
Length of sensor -
96 Millimetre
Maximum output current -
100 Milliampere
No load current -
0 Milliampere
Setting procedure -
Manual adjustment
Supply voltage -
18 Volt
Switching frequency -
2000 Hertz
Type of electric connection -
Connector M12
Type of switch function -
Anticoincidence
Type of switching output -
PNP/NPN
Voltage type -
DC
Width sensor -
22 Millimetre
Leuze

Availability On Request

£543.00
Sign in or Register for customer prices.

Additional Information

Data Sheets

Manuals / Links
