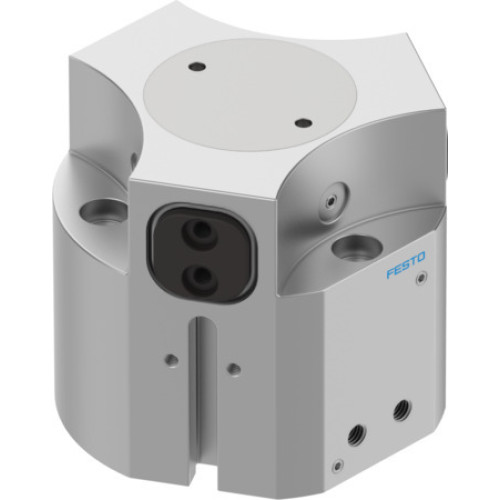

HGDD-40-A-G2 Three-point gripper

Manufacturer's No: HGDD-40-A-G2     Manufacturer: Festo
HGDD-40-A-G2 Three-point gripper

Availability On Request

£1,211.64
  • Model: HGDD-40-A-G2
  • Gripper Type: Three-point gripper
  • Gripping Force Backup: Yes, during closing
  • Size: 40
  • Stroke per Gripper Jaw: 6 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash: ? 0.1 deg
  • Max. Gripper Jaw Backlash: ? 0.05 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.03 mm

Read more

  • Number of Gripper Jaws: 3
  • Mounting Position: Optional
  • Mode of Operation: Double-acting
  • Design: Wedge-shaped drive, Force pilot operated motion sequence
  • Position Detection: Via proximity switch
  • Operating Pressure: 4 BAR (normal), 8 BAR (blocked air)
  • Max. Operating Frequency: 4 HZ
  • Min. Opening Time: 144 MS at 0.6 MPa
  • Min. Closing Time: 110 MS at 0.6 MPa
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: 2 - Moderate corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP65
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 5.01 KGC
  • Max. Force on Gripper Jaw: 700 N
  • Max. Torque at Gripper: Mx static: 25 NM, My static: 18 NM, Mz static: 20 NM
  • Lubrication Interval for Guide Components: 5 years
  • Max. Mass per External Gripper Finger: 130 g
  • Product Weight: 775 g
  • Type of Mounting: Via through-hole and dowel pin, Via female thread and dowel pin, Either
  • Pneumatic Connection: M3 (blocked air), M5
  • Material: RoHS-compliant
  • Material Cover Cap: High-alloy stainless steel
  • Material Housing: Smooth-anodised wrought aluminium alloy
  • Material Gripper Jaws: Hardened steel


Product

Manufacturer Material ID -
HGDD-40-A-G2
Net Weight -
0.98kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
