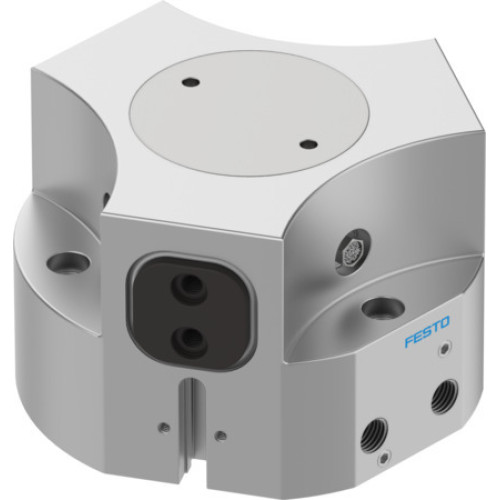

HGDD-63-A Three-point gripper

Manufacturer's No: HGDD-63-A     Manufacturer: Festo
HGDD-63-A Three-point gripper

Availability On Request

£1,339.28
  • Model: HGDD-63-A
  • Gripper Size: 63
  • Gripper Function: 3-point
  • Number of Gripper Jaws: 3
  • Stroke per Gripper Jaws: 10 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Repetition Accuracy: 0.05 mm
  • Gripper Jaw Backlash:
    • Max. Angular (ax, ay): 0.1 deg
    • Max. Sz: 0.05 mm
  • Rotationally Symmetrical: 0.2 mm
  • Mounting Position: Optional

Read more

  • Mode of Operation: Double-acting
  • Design:
    • Wedge-shaped Drive
    • Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Total Gripping Force:
    • Opening: 1746 N
    • Closing: 1659 N
  • Operating Pressure:
    • Min: 3 bar
    • Max: 8 bar
    • Blocked Air: 0 bar (min) - 0.5 bar (max)
  • Max. Operating Frequency: 4 Hz
  • Min. Opening Time: 115 ms
  • Min. Closing Time: 145 ms
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP65
  • Ambient Temperature:
    • Min: 5°C
    • Max: 60°C
  • Gripper Force per Jaw:
    • Opening: 582 N
    • Closing: 553 N
  • Mass Moment of Inertia: 29 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 2300 N
  • Max. Torque at Gripper:
    • Mx Static: 70 Nm
    • My Static: 45 Nm
    • Mz Static: 50 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Max. Mass per External Gripper Finger: 440 g
  • Product Weight: 2175 g
  • Type of Mounting:
    • Via Through-hole and Dowel Pin
    • Via Female Thread and Dowel Pin
    • Either
  • Pneumatic Connection:
    • Blocked Air: M5
    • Normal: G1/8
  • Material:
    • Cover Cap: High-alloy Stainless Steel
    • Housing: Smooth-anodised Wrought Aluminium Alloy
    • Gripper Jaws: Hardened Steel
  • Note: RoHS-compliant


Product

Manufacturer Material ID -
HGDD-63-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,339.28
