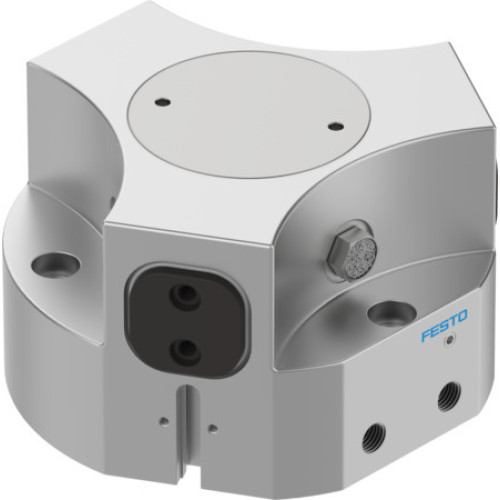

HGDD-80-A Three-point gripper

Manufacturer's No: HGDD-80-A     Manufacturer: Festo
HGDD-80-A Three-point gripper

Availability On Request

£1,585.16
  • Model: HGDD-80-A
  • Gripper Size: 80
  • Gripper Type: Three-point
  • Stroke per Gripper Jaws: 12 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Gripper Jaw Backlash:
    • Max. Angular (ax, ay): 0.1 deg
    • Max. Linear (Sz): 0.05 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.05 mm
  • Number of Gripper Jaws: 3
  • Mounting Position: Optional

Read more

  • Mode of Operation: Double-acting
  • Gripper Function: 3-point
  • Drive Design: Wedge-shaped
  • Motion Sequence: Force pilot operated
  • Position Detection: Via proximity switch
  • Total Gripping Force:
    • Opening: 2829 N
    • Closing: 2745 N
  • Operating Pressure:
    • Min: 3 bar
    • Max: 8 bar
  • Operating Frequency: 4 Hz
  • Opening Time at 0.6 MPa: 152 ms
  • Closing Time at 0.6 MPa: 142 ms
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: 2 (Moderate)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP65
  • Ambient Temperature Range: 5°C to 60°C
  • Gripper Force per Jaw:
    • Opening: 943 N
    • Closing: 915 N
  • Mass Moment of Inertia: 70.22 kgcm²
  • Max. Force on Gripper Jaw: 3600 N
  • Max. Torque at Gripper:
    • Mx: 100 Nm
    • My: 65 Nm
    • Mz: 75 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Max. Mass per External Gripper Finger: 790 g
  • Product Weight: 3522 g
  • Mounting Types:
    • Via Through-hole and Dowel Pin
    • Via Female Thread and Dowel Pin
    • Either
  • Pneumatic Connection: G1/8
  • RoHS-compliant Materials
  • Material:
    • Cover Cap: High-alloy Stainless Steel
    • Housing: Smooth-anodised Wrought Aluminium Alloy
    • Gripper Jaws: Hardened Steel
