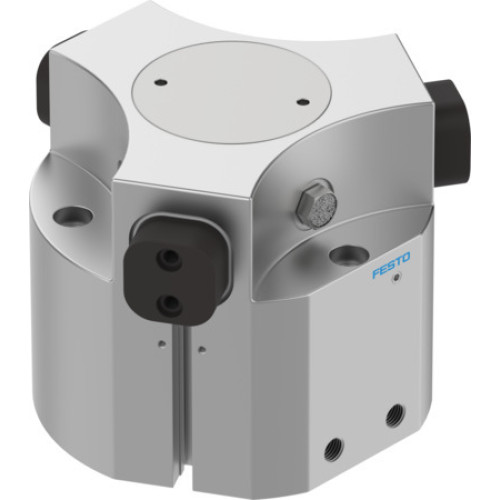

HGDD-80-A-G1 Three-point gripper

Manufacturer's No: HGDD-80-A-G1     Manufacturer: Festo
HGDD-80-A-G1 Three-point gripper

Availability On Request

£1,776.59
  • Three-point gripper HGDD-80-A-G1 with gripping force backup during opening
  • Size: 80
  • Stroke per gripper jaw: 12 mm
  • Max. replacement accuracy: <= 0.2 mm
  • Max. angular gripper jaw backlash ax, ay: <= 0.1 deg
  • Max. gripper jaw backlash Sz: <= 0.05 mm
  • Number of gripper jaws: 3
  • Mounting position: Optional
  • Mode of operation: Double-acting
  • Gripper function: 3-point

Read more

  • Design: Wedge-shaped drive with force pilot operated motion sequence
  • Position detection: Via proximity switch
  • Operating pressure: 4 BAR (normal), 8 BAR (blocked air)
  • Max. operating frequency of gripper: 4 HZ
  • Min. opening time at 0.6 MPa: 72 MS
  • Min. closing time at 0.6 MPa: 246 MS
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Degree of protection: IP65
  • Ambient temperature: 5 to 60 degrees Celsius
  • Mass moment of inertia: 109 KGC
  • Max. force on gripper jaw Fz static: 3600 N
  • Max. torque at gripper Mx static: 100 NM, My static: 65 NM, Mz static: 75 NM
  • Lubrication interval for guide components: 5 years
  • Max. mass per external gripper finger: 790 g
  • Product weight: 4788 g
  • Type of mounting: Via through-hole and dowel pin, or via female thread and dowel pin
  • Pneumatic connection: G1/8
  • RoHS-compliant materials: High-alloy stainless steel (cover cap), Smooth-anodised wrought aluminium alloy (housing), Hardened steel (gripper jaws)
