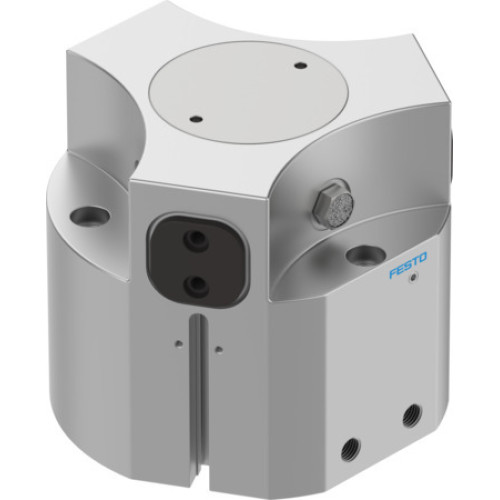

HGDD-80-A-G2 Three-point gripper

Manufacturer's No: HGDD-80-A-G2     Manufacturer: Festo
HGDD-80-A-G2 Three-point gripper

Availability On Request

£1,776.59
  • Three-point gripper HGDD-80-A-G2
  • Gripping force backup during closing
  • Size: 80
  • Stroke per gripper jaw: 12 mm
  • Max. replacement accuracy: ? 0.2 mm
  • Max. angular gripper jaw backlash ax, ay: ? 0.1 deg
  • Max. gripper jaw backlash Sz: ? 0.05 mm
  • Rotationally symmetrical
  • Repetition accuracy: 0.05 mm
  • Number of gripper jaws: 3

Read more

  • Mounting position: optional
  • Mode of operation: Double-acting
  • Design: Wedge-shaped drive
  • Design: Force pilot operated motion sequence
  • Position detection: Via proximity switch
  • Operating pressure: 4 BAR (normal), 8 BAR (blocked air)
  • Max. operating frequency of gripper: 4 HZ
  • Min. opening time at 0.6 MPa: 159 MS
  • Min. closing time at 0.6 MPa: 107 MS
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Degree of protection: IP65
  • Ambient temperature: 5 to 60 degrees Celsius
  • Mass moment of inertia: 109 KGC
  • Max. force on gripper jaw Fz static: 3600 N
  • Max. torque at gripper Mx static: 100 NM
  • Max. torque at gripper My static: 65 NM
  • Max. torque at gripper Mz static: 75 NM
  • Lubrication interval for guide components: 5 years
  • Max. mass per external gripper finger: 790 g
  • Product weight: 4788 g
  • Type of mounting: Via through-hole, dowel pin, female thread
  • Pneumatic connection: G1/8
  • RoHS-compliant materials
  • Material cover cap: High-alloy stainless steel
  • Material housing: Smooth-anodised wrought aluminium alloy
  • Material gripper jaws: Hardened steel


Product

Manufacturer Material ID -
HGDD-80-A-G2
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
