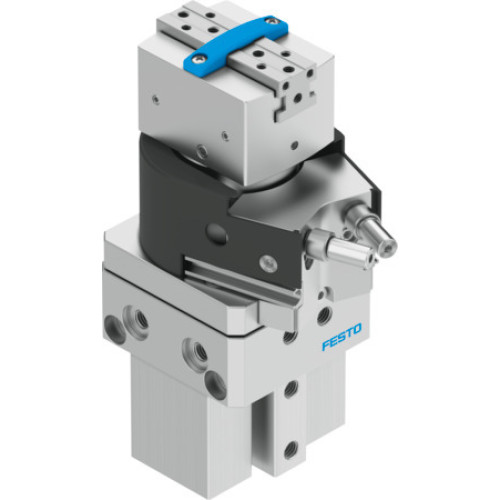

HGDS-PP-12-YSRT-A-B Swivel/gripper unit

Manufacturer's No: HGDS-PP-12-YSRT-A-B     Manufacturer: Festo
HGDS-PP-12-YSRT-A-B Swivel/gripper unit

Availability On Request

£1,365.62
  • Model: HGDS-PP-12-YSRT-A-B
  • Size: 12
  • Rotation angle adjustment range: 0 - 210 degrees
  • Stroke per gripper jaw: 2.5 mm
  • Max. angular gripper jaw backlash: 0.1 degrees
  • Max. gripper jaw backlash: 0.02 mm
  • Swivel angle: 210 degrees
  • Repetition accuracy, gripper: 0.01 mm
  • Repetition accuracy of swivel angle: 0.02 degrees
  • Number of gripper jaws: 2

Read more

  • Cushioning of swivel drive: Shock absorber at both ends
  • Cushioning adjustment range: 1 mm
  • Fine adjustment of swivel drive: -2.5 degrees
  • Mode of operation: Double-acting
  • Gripper function: Parallel
  • Design: Semi-rotary drive with parallel gripper and gripper drive
  • Position detection: Via proximity switch for both gripper and swivel drive
  • Operating pressure: 3 bar (min) - 8 bar (max)
  • Max. operating frequency of gripper: 4 Hz
  • Max. swivel frequency at 0.6 MPa: 1.5 Hz
  • Min. opening time at 0.6 MPa: 40 ms
  • Min. closing time at 0.6 MPa: 60 ms
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: 5°C (min) - 60°C (max)
  • Gripper force per gripper jaw: 42 N (opening) - 37 N (closing)
  • Total gripping force: 84 N (opening) - 74 N (closing)
  • Max. force on gripper jaw: 90 N
  • Max. torque at gripper: 6 Nm (Mx, My, Mz static)
  • Theoretical torque at 0.6 MPa: 0.85 Nm
  • Product weight: 505 g
  • Max. mass per external gripper finger: 30 g (throttled: 150 g)
  • Type of mounting: Via female thread, through-hole, or dovetail slot
  • Pneumatic connection: M5
  • Materials: RoHS-compliant; Steel (drive shaft), Aluminium (cover), POM (cover), NBR (seals), Wrought aluminium alloy (housing), High-alloy stainless steel (gripper jaws)


Product

Manufacturer Material ID -
HGDS-PP-12-YSRT-A-B
Net Weight -
0.61kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
