HGDS-PP-16-YSRT-A-B Swivel/gripper unit

Manufacturer's No: HGDS-PP-16-YSRT-A-B     Manufacturer: Festo

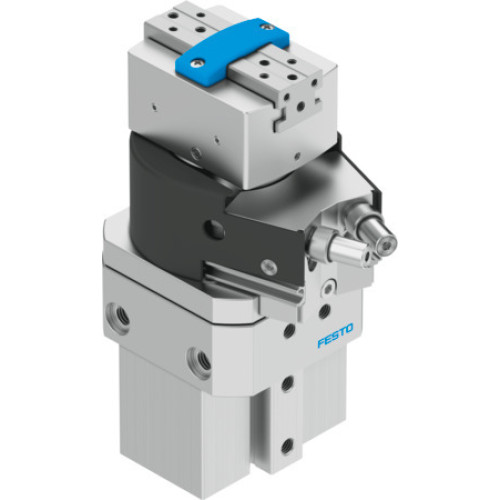

HGDS-PP-16-YSRT-A-B Swivel/gripper unit

Availability On Request

£1,470.06
  • Model: HGDS-PP-16-YSRT-A-B
  • Size: 16
  • Rotation angle adjustment range: 0 - 210 degrees
  • Stroke per gripper jaw: 4.5 mm
  • Max. angular gripper jaw backlash: 0.1 degrees
  • Max. gripper jaw backlash: 0.02 mm
  • Swivel angle: 210 degrees
  • Repetition accuracy, gripper: 0.01 mm
  • Repetition accuracy of swivel angle: 0.02 degrees
  • Number of gripper jaws: 2

Read more

  • Cushioning of swivel drive: Shock absorber at both ends
  • Cushioning adjustment range: 1.3 mm
  • Mounting position: Optional
  • Fine adjustment of swivel drive: -2.5 degrees
  • Mode of operation: Double-acting
  • Gripper function: Parallel
  • Design: Semi-rotary drive with parallel gripper and gripper drive
  • Position detection: Via proximity switch for gripper and swivel drive
  • Operating pressure: 3 bar (min) - 8 bar (max)
  • Max. operating frequency of gripper: 4 Hz
  • Max. swivel frequency: 1.5 Hz at 0.6 MPa
  • Min. opening time: 40 ms at 0.6 MPa
  • Min. closing time: 60 ms at 0.6 MPa
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class: 2 - Moderate corrosion stress
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: 5°C (min) - 60°C (max)
  • Gripper force per jaw: 58 N (opening), 51 N (closing)
  • Total gripping force: 116 N (opening), 102 N (closing)
  • Max. force on gripper jaw: 150 N
  • Max. torque at gripper: 11 Nm (static)
  • Theoretical torque: 1.25 Nm at 0.6 MPa
  • Product weight: 730 g
  • Max. mass per external gripper finger: 50 g (normal), 200 g (throttled)
  • Type of mounting: Via female thread, through-hole, dovetail slot
  • Pneumatic connection: M5
  • Material: RoHS-compliant with steel drive shaft, aluminum cover, POM cover, NBR seals, high-alloy stainless steel gripper jaws


Product

Manufacturer Material ID -
HGDS-PP-16-YSRT-A-B
Net Weight -
0.83kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
