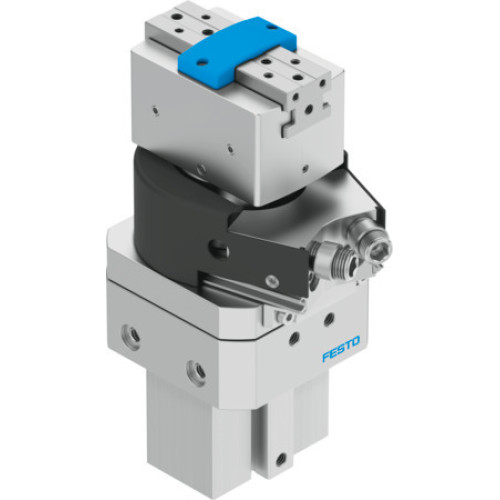

HGDS-PP-20-P1-A-B Swivel/gripper unit

Manufacturer's No: HGDS-PP-20-P1-A-B     Manufacturer: Festo
HGDS-PP-20-P1-A-B Swivel/gripper unit

Availability On Request

£1,502.17
  • Model: HGDS-PP-20-P1-A-B
  • Size: 20
  • Rotation angle adjustment range: 0 - 210 degrees
  • Stroke per gripper jaw: 7 mm
  • Max. angular gripper jaw backlash: 0.1 degrees
  • Max. gripper jaw backlash: 0.02 mm
  • Repetition accuracy, gripper: 0.015 mm
  • Repetition accuracy of swivel angle: 0.02 degrees
  • Number of gripper jaws: 2
  • Cushioning: Elastic cushioning rings/plates with fixed stop

Read more

  • Cushioning adjustment range: 2.8 mm
  • Fine adjustment of swivel drive: -6 degrees
  • Mode of operation: Double-acting
  • Gripper function: Parallel
  • Design: Semi-rotary drive with parallel gripper and gripper drive
  • Position detection: Via proximity switch
  • Operating pressure: 3 - 8 BAR
  • Max. operating frequency of gripper: 4 Hz
  • Max. swivel frequency: 2 Hz
  • Min. opening time: 60 ms
  • Min. closing time: 70 ms
  • Operating medium: Compressed air
  • Corrosion resistance class: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Ambient temperature: 5 - 60 degrees Celsius
  • Gripper force per jaw: 96 N (opening), 84 N (closing)
  • Total gripping force: 192 N (opening), 168 N (closing)
  • Max. force on gripper jaw: 250 N
  • Max. torque at gripper: 22 Nm (Mx, My, Mz static), 2.5 Nm (theoretical)
  • Product weight: 1260 g
  • Max. mass per external gripper finger: 100 g
  • Type of mounting: Via female thread, through-hole, or dovetail slot
  • Pneumatic connection: M5
  • Materials: RoHS-compliant, steel (drive shaft), aluminum (cover), POM (cover), NBR (seals), wrought aluminum alloy (housing), high-alloy stainless steel (gripper jaws)
