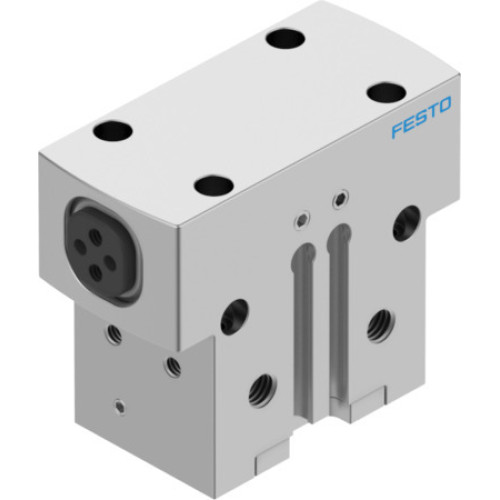

HGPD-16-A-G2 Parallel gripper

Manufacturer's No: HGPD-16-A-G2     Manufacturer: Festo
HGPD-16-A-G2 Parallel gripper

Availability On Request

£892.79
  • Model: HGPD-16-A-G2
  • Gripping Force Backup: Yes
  • Size: 16
  • Stroke per Gripper Jaw: 3 mm
  • Max. Replacement Accuracy: <= 0.2 mm
  • Max. Angular Gripper Jaw Backlash Ax, Ay: <= 0.1 deg
  • Max. Gripper Jaw Backlash Sz: <= 0.02 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Mounting Position: Optional

Read more

  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Design: Wedge-Shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 4 BAR (Normal), 8 BAR (Blocked Air)
  • Max. Operating Frequency of Gripper: 3 HZ
  • Min. Opening Time at 0.6 MPa: 30 MS
  • Min. Closing Time at 0.6 MPa: 15 MS
  • Max. Mass per External Gripper Finger: 25 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 (Moderate Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Suitability for Li-Ion Battery Production: Metals with >5% copper excluded
  • Degree of Protection: IP65
  • Ambient Temperature: 5 to 60°C
  • Mass Moment of Inertia: 0.27 kgcm²
  • Max. Torque at Gripper: Mx static: 8 Nm, My static: 4 Nm, Mz static: 3 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 117 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole, Dowel Pin
  • Pneumatic Connection: M3 (Blocked Air), M5
  • Materials: RoHS-Compliant, Cover Cap: High-Alloy Stainless Steel, Housing: Anodised Aluminium, Gripper Jaws: Hardened Steel


Product

Manufacturer Material ID -
HGPD-16-A-G2
Net Weight -
0.15kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
