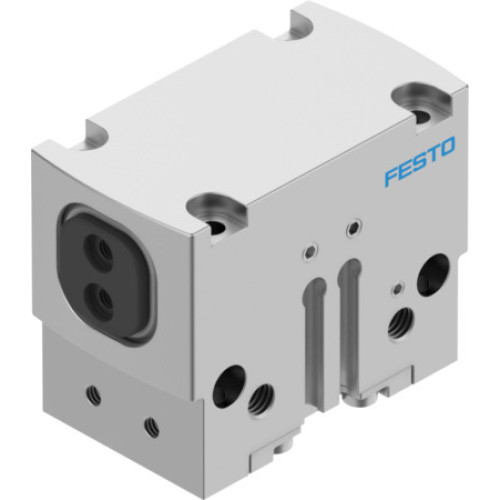

HGPD-20-A Parallel gripper

Manufacturer's No: HGPD-20-A     Manufacturer: Festo
HGPD-20-A Parallel gripper

Availability On Request

£856.30
  • Model: HGPD-20-A
  • Gripper Size: 20
  • Stroke per Gripper Jaws: 4 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): 0.1 deg
  • Max. Gripper Jaw Backlash (Sz): 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.04 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic

Read more

  • Mounting Position: Optional
  • Mode of Operation: Double-acting
  • Gripper Function: Parallel
  • Gripper Force Back-up: None
  • Design: Wedge-shaped Drive
  • Design: Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 3 bar, 8 bar
  • Operating Pressure of Blocked Air: 0 bar, 0.5 bar
  • Max. Operating Frequency of Gripper: 3 Hz
  • Min. Opening Time at 0.6 MPa: 28 ms
  • Min. Closing Time at 0.6 MPa: 31 ms
  • Max. Mass per External Gripper Finger: 57 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP65
  • Ambient Temperature: 5°C, 60°C
  • Total Gripping Force (Opening, Closing): 159 N, 150 N
  • Gripper Force per Gripper Jaw (Opening, Closing): 80 N, 75 N
  • Mass Moment of Inertia: 0.4 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 250 N
  • Max. Torque at Gripper (Mx, My, Mz) Static: 12 Nm, 7 Nm, 6 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 163 g
  • Type of Mounting: Via Female Thread and Centring Sleeve, Via Through-hole and Dowel Pin, Either
  • Pneumatic Connection (Blocked Air, Normal): M3, M5
  • Material: RoHS-compliant
  • Material Cover Cap: High-alloy Stainless Steel
  • Material Housing: Anodised Aluminium
  • Material Gripper Jaws: Hardened Steel


Product

Manufacturer Material ID -
HGPD-20-A
Net Weight -
0.20kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£856.30
