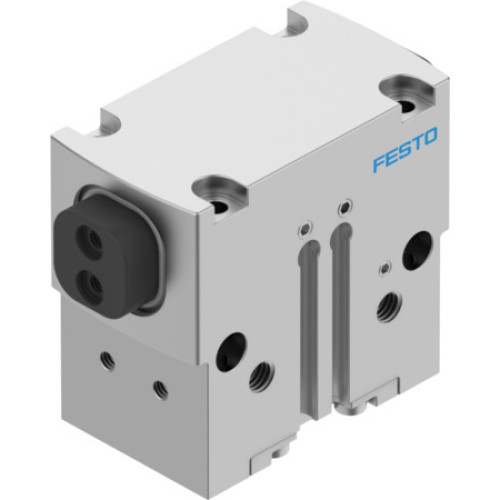

HGPD-20-A-G1 Parallel gripper

Manufacturer's No: HGPD-20-A-G1     Manufacturer: Festo
HGPD-20-A-G1 Parallel gripper

Availability On Request

£965.77
  • Model: HGPD-20-A-G1
  • Gripping Force Backup: Yes
  • Size: 20
  • Stroke per Gripper Jaw: 4 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): ? 0.1 deg
  • Max. Gripper Jaw Backlash (Sz): ? 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.04 mm
  • Number of Gripper Jaws: 2

Read more

  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Mode of Operation: Double-acting
  • Gripper Function: Parallel
  • Design: Wedge-shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 4 BAR (normal), 8 BAR (blocked air)
  • Max. Operating Frequency: 3 HZ
  • Min. Opening Time: 13 MS at 0.6 MPa
  • Min. Closing Time: 25 MS at 0.6 MPa
  • Max. Mass per External Gripper Finger: 57 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: 2 (Moderate Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Suitability for Li-ion Battery Production: Excludes metals with >5% copper
  • Degree of Protection: IP65
  • Ambient Temperature: 5 to 60°C
  • Mass Moment of Inertia: 0.52 kgcm²
  • Max. Torque at Gripper: Mx static 12 Nm, My static 7 Nm, Mz static 6 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 182 g
  • Type of Mounting: Female Thread, Centring Sleeve, Through-hole, Dowel Pin
  • Pneumatic Connection: M3 (blocked air), M5
  • Material: RoHS-compliant, Cover Cap - High-alloy Stainless Steel, Housing - Anodised Aluminium, Gripper Jaws - Hardened Steel


Product

Manufacturer Material ID -
HGPD-20-A-G1
Net Weight -
0.25kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
