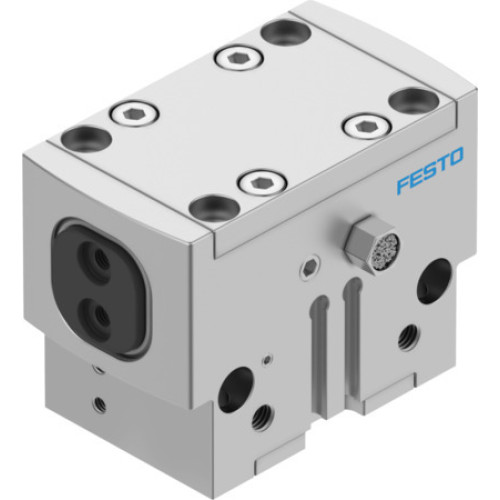

HGPD-25-A Parallel gripper

Manufacturer's No: HGPD-25-A     Manufacturer: Festo
HGPD-25-A Parallel gripper

Availability On Request

£892.79
  • Model: HGPD-25-A
  • Gripper Size: 25
  • Gripper Type: Parallel
  • Gripper Jaws: 2
  • Stroke per Gripper Jaws: 6 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Repetition Accuracy: 0.04 mm
  • Gripper Force per Jaw: 144 N (opening), 133 N (closing)
  • Total Gripping Force: 288 N (opening), 266 N (closing)
  • Drive System: Pneumatic

Read more

  • Gripper Design: Wedge-shaped drive, Force pilot operated motion sequence
  • Mounting Options: Optional - Via female thread, centring sleeve, through-hole, dowel pin
  • Operating Pressure: 3 BAR (normal), 8 BAR (max), 0 BAR (blocked air), 0.5 BAR (blocked air)
  • Operating Frequency: 3 HZ
  • Min. Opening Time: 29 MS at 0.6 MPa
  • Min. Closing Time: 35 MS at 0.6 MPa
  • Position Detection: Via proximity switch
  • Lubrication: Lubricated operation possible
  • Corrosion Resistance: Moderate (CRC: 2)
  • Protection: IP65
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 1.32 kgcm²
  • Max. Force on Gripper Jaw: 500 N
  • Max. Torque: 30 NM (Mx), 25 NM (My), 15 NM (Mz)
  • Lubrication Interval: 5 years
  • Product Weight: 327 g
  • Materials: RoHS-compliant, High-alloy stainless steel (cover cap), Anodised aluminium (housing), Hardened steel (gripper jaws)


Product

Manufacturer Material ID -
HGPD-25-A
Net Weight -
0.39kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
