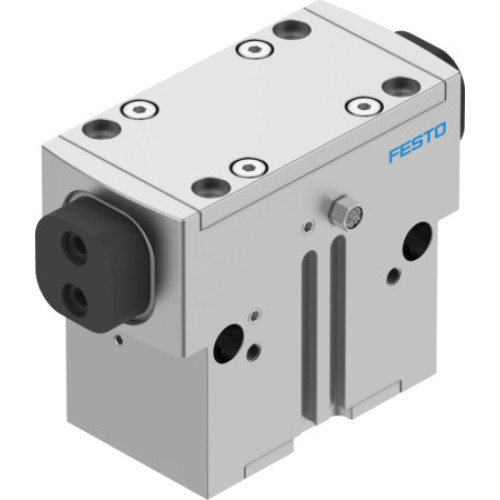

HGPD-40-A-G1 Parallel gripper

Manufacturer's No: HGPD-40-A-G1     Manufacturer: Festo
HGPD-40-A-G1 Parallel gripper

Availability On Request

£1,266.30
  • Model: HGPD-40-A-G1
  • Gripping Force Backup During Opening
  • Size: 40
  • Stroke per Gripper Jaw: 10 mm
  • Max. Replacement Accuracy: ? 0.2 mm
  • Max. Angular Gripper Jaw Backlash Ax, Ay: ? 0.1 deg
  • Max. Gripper Jaw Backlash Sz: ? 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.05 mm
  • Number of Gripper Jaws: 2

Read more

  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Design: Wedge-Shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 4 BAR (Normal), 8 BAR (Blocked Air)
  • Max. Operating Frequency of Gripper: 2 HZ
  • Min. Opening Time at 0.6 MPa: 73 MS
  • Min. Closing Time at 0.6 MPa: 157 MS
  • Max. Mass per External Gripper Finger: 445 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 (Moderate Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP65
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 14.09 kgcm²
  • Max. Torque at Gripper: Mx Static: 70 Nm, My Static: 45 Nm, Mz Static: 35 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 1223 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole, Dowel Pin
  • Pneumatic Connection: M5
  • RoHS-Compliant Materials
  • Material: Cover Cap - High-Alloy Stainless Steel, Housing - Anodised Aluminium, Gripper Jaws - Hardened Steel


Product

Manufacturer Material ID -
HGPD-40-A-G1
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,266.30
