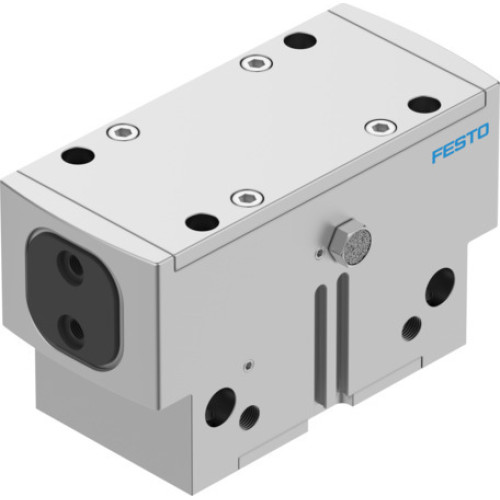

HGPD-63-A Parallel gripper

Manufacturer's No: HGPD-63-A     Manufacturer: Festo
HGPD-63-A Parallel gripper

Availability On Request

£1,977.00
  • Model: HGPD-63-A
  • Gripper Size: 63
  • Stroke per Gripper Jaws: 16 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash ax, ay: 0.1 deg
  • Max. Gripper Jaw Backlash Sz: 0.02 mm
  • Repetition Accuracy: 0.05 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Gripper Function: Parallel

Read more

  • Gripper Force Back-up: None
  • Design: Wedge-shaped Drive
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 3 bar, 8 bar
  • Operating Pressure of Blocked Air: 0 bar, 0.5 bar
  • Max. Operating Frequency of Gripper: 2 Hz
  • Min. Opening Time at 0.6 MPa: 150 ms
  • Min. Closing Time at 0.6 MPa: 162 ms
  • Max. Mass per External Gripper Finger: 1340 g
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP65
  • Ambient Temperature: 5°C to 60°C
  • Total Gripping Force: 1935 N (Opening), 1856 N (Closing)
  • Gripper Force per Gripper Jaw: 967 N (Opening), 928 N (Closing)
  • Mass Moment of Inertia: 80.33 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 3000 N
  • Max. Torque at Gripper: 120 Nm (Mx), 80 Nm (My), 65 Nm (Mz) Static
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 3365 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-hole, Dowel Pin
  • Pneumatic Connection: M5 (Blocked Air), G1/8
  • Materials: RoHS-compliant, High-alloy Stainless Steel (Cover Cap), Anodised Aluminium (Housing), Hardened Steel (Gripper Jaws)


Product

Manufacturer Material ID -
HGPD-63-A
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
