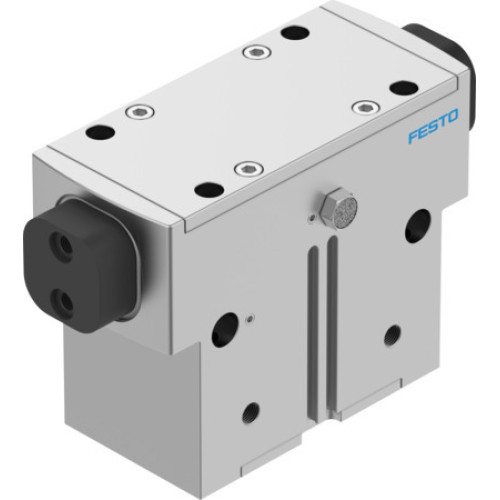

HGPD-63-A-G1 Parallel gripper

Manufacturer's No: HGPD-63-A-G1     Manufacturer: Festo
HGPD-63-A-G1 Parallel gripper

Availability On Request

£2,068.13
  • Model: HGPD-63-A-G1
  • Gripping force backup during opening
  • Size: 63
  • Stroke per gripper jaw: 16 mm
  • Max. replacement accuracy: ? 0.2 mm
  • Max. angular gripper jaw backlash ax, ay: ? 0.1 deg
  • Max. gripper jaw backlash Sz: ? 0.02 mm
  • Rotationally symmetrical: 0.2 mm
  • Repetition accuracy: 0.05 mm
  • Number of gripper jaws: 2

Read more

  • Drive system: Pneumatic
  • Mounting position: Optional
  • Mode of operation: Double-acting
  • Gripper function: Parallel
  • Design: Wedge-shaped drive, force pilot operated motion sequence
  • Position detection: Via proximity switch
  • Operating pressure: 4 BAR (normal), 8 BAR (blocked air)
  • Max. operating frequency: 2 HZ
  • Min. opening time at 0.6 MPa: 170 MS
  • Min. closing time at 0.6 MPa: 328 MS
  • Max. mass per external gripper finger: 1340 g
  • Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion resistance class CRC: 2 (Moderate corrosion stress)
  • LABS (PWIS) conformity: VDMA24364-B2-L
  • Degree of protection: IP65
  • Ambient temperature: 5°C to 60°C
  • Mass moment of inertia: 116.19 kgcm²
  • Max. torque at gripper: Mx static: 120 Nm, My static: 80 Nm, Mz static: 65 Nm
  • Lubrication interval for guide components: 5 years
  • Product weight: 3998 g
  • Type of mounting: Via female thread and centring sleeve, through-hole and centring sleeve, through-hole and dowel pin, female thread and dowel pin, or either
  • Pneumatic connection: Blocked air - M5, normal - G1/8
  • RoHS-compliant materials
  • Material: Cover cap - High-alloy stainless steel, housing - Anodised aluminium, gripper jaws - Hardened steel


Product

Manufacturer Material ID -
HGPD-63-A-G1
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£2,068.13
