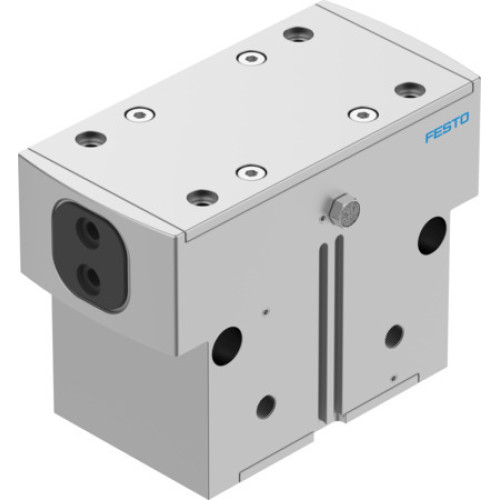

HGPD-80-A-G2 Parallel gripper

Manufacturer's No: HGPD-80-A-G2     Manufacturer: Festo
HGPD-80-A-G2 Parallel gripper

Availability On Request

£2,587.40
  • Model: HGPD-80-A-G2
  • Gripping Force Backup: Yes
  • Size: 80
  • Stroke per Gripper Jaw: 20 mm
  • Max. Replacement Accuracy: <= 0.2 mm
  • Max. Angular Gripper Jaw Backlash: <= 0.1 deg
  • Max. Gripper Jaw Backlash: <= 0.02 mm
  • Rotationally Symmetrical: 0.2 mm
  • Repetition Accuracy: 0.05 mm
  • Number of Gripper Jaws: 2

Read more

  • Drive System: Pneumatic
  • Mounting Position: Optional
  • Mode of Operation: Double-Acting
  • Gripper Function: Parallel
  • Design: Wedge-Shaped Drive, Force Pilot Operated Motion Sequence
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 4 BAR (normal), 8 BAR (blocked air)
  • Max. Operating Frequency: 2 HZ
  • Min. Opening Time: 379 MS at 0.6 MPa
  • Min. Closing Time: 240 MS at 0.6 MPa
  • Max. Mass per External Gripper Finger: 2170 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: 2 (Moderate Corrosion Stress)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Degree of Protection: IP65
  • Ambient Temperature: 5 to 60 degrees Celsius
  • Mass Moment of Inertia: 319.95 kgcm^2
  • Max. Torque at Gripper: Mx static: 170 Nm, My static: 130 Nm, Mz static: 110 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 7484 g
  • Type of Mounting: Via Female Thread, Centring Sleeve, Through-Hole, Dowel Pin
  • Pneumatic Connection: M5 (blocked air), G1/4
  • RoHS-Compliant Materials
  • Material: Cover Cap - High-Alloy Stainless Steel, Housing - Anodised Aluminium, Gripper Jaws - Hardened Steel


Product

Manufacturer Material ID -
HGPD-80-A-G2
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
