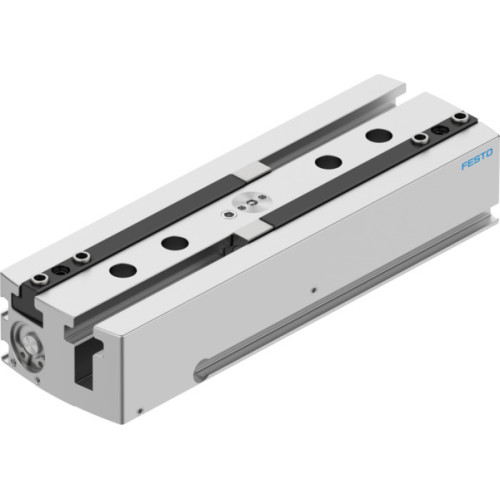

HGPL-14-60-A-B Parallel gripper

Manufacturer's No: HGPL-14-60-A-B     Manufacturer: Festo
HGPL-14-60-A-B Parallel gripper

Availability Back Order

£1,320.30
  • Model: HGPL-14-60-A-B
  • Gripper Size: 14
  • Stroke per Gripper Jaws: 60 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): 0.2°
  • Max. Gripper Jaw Backlash (Sz): 0.05 mm
  • Repetition Accuracy: 0.03 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Gripper Function: Parallel

Read more

  • Gripper Force Backup: None
  • Design: Twin Piston, Guidance, Piston Gate Valve, T-Shape, Rack and Pinion
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 3 bar, 8 bar
  • Max. Operating Frequency: 1 Hz
  • Min. Opening Time at 0.6 MPa: 270 ms
  • Min. Closing Time at 0.6 MPa: 230 ms
  • Max. Mass per External Gripper Finger: 80 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Ambient Temperature: 5°C to 60°C
  • Total Gripping Force: Opening - 126 N, Closing - 158 N
  • Gripper Force per Gripper Jaw: Opening - 63 N, Closing - 79 N
  • Mass Moment of Inertia: 11.43 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 500 N
  • Max. Torque at Gripper: Mx Static, My Static, Mz Static - 35 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 595 g
  • Type of Mounting: Via Female Thread and Centring Sleeve, Via Through-Hole and Centring Sleeve
  • Pneumatic Connection: M5
  • Material Housing: Smooth-Anodised Wrought Aluminium Alloy
  • Material Gripper Jaws: Hardened Steel
  • Note on Materials: RoHS-Compliant

Accessories

PUN-H-6X1-BL 6MM PLASTIC TUBING

Product Code - 197384
Price £1.09
Back Order

FESTO PUSH-IN FITTING

Product Code - 153306
Price £2.63
Back Order

QSML-M5-6 PUSH-IN L-FITTING

Product Code - 153335
Price £3.66
Back Order

ZBH-9-B Centring sleeve

Product Code - 8137184
Price £1.59
Back Order

PUN-H-6X1-NT 6MM PLASTIC TUBING

Product Code - 197377
Price £1.09
Back Order


Product

Manufacturer Material ID -
HGPL-14-60-A-B
Net Weight -
0.66kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
