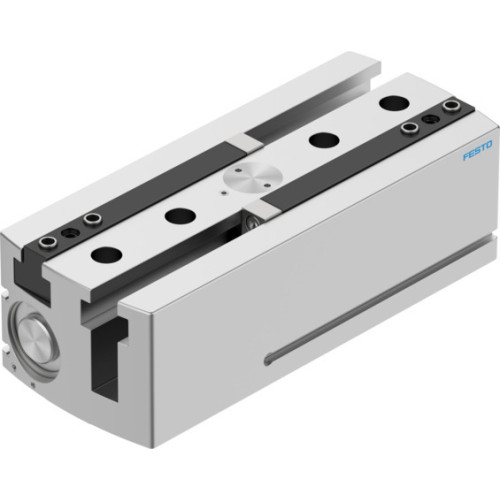

HGPL-40-100-A-B Parallel gripper

Manufacturer's No: HGPL-40-100-A-B     Manufacturer: Festo
HGPL-40-100-A-B Parallel gripper

Availability On Request

£2,261.08
  • Model: HGPL-40-100-A-B
  • Gripper Size: 40
  • Stroke per Gripper Jaws: 100 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash ax, ay: 0.2 deg
  • Max. Gripper Jaw Backlash Sz: 0.05 mm
  • Repetition Accuracy, Gripper: 0.03 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Gripper Function: Parallel

Read more

  • Gripper Force Back-up: None
  • Design: Twin Piston, Guidance, Piston Gate Valve, T-Shape, Rack and Pinion
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 3 bar, 8 bar
  • Max. Operating Frequency of Gripper: 1 Hz
  • Min. Opening Time at 0.6 MPa: 620 ms
  • Min. Closing Time at 0.6 MPa: 690 ms
  • Max. Mass per External Gripper Finger: 420 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Ambient Temperature: 5°C, 60°C
  • Total Gripping Force: Opening - 1038 N, Closing - 1216 N
  • Gripper Force per Gripper Jaw: Opening - 519 N, Closing - 608 N
  • Mass Moment of Inertia: 318.25 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 2500 N
  • Max. Torque at Gripper: Mx Static - 125 Nm, My Static - 80 Nm, Mz Static - 100 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 5340 g
  • Type of Mounting: Via Female Thread and Centring Sleeve, Via Through-Hole and Centring Sleeve
  • Pneumatic Connection: M5
  • Material Housing: Smooth-Anodised Wrought Aluminium Alloy
  • Material Gripper Jaws: Hardened Steel
  • Note: Lubricated operation possible, RoHS-compliant materials


Product

Manufacturer Material ID -
HGPL-40-100-A-B
Net Weight -
0.01kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£2,261.08
