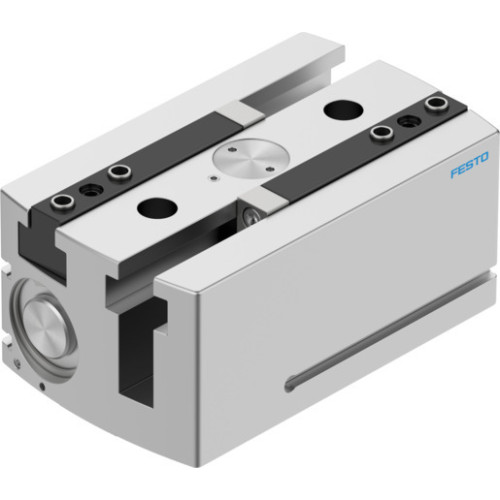

HGPL-40-60-A-B Parallel gripper

Manufacturer's No: HGPL-40-60-A-B     Manufacturer: Festo
HGPL-40-60-A-B Parallel gripper

Availability On Request

£1,944.84
  • Model: HGPL-40-60-A-B
  • Gripper Size: 40
  • Stroke per Gripper Jaws: 60 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Gripper Jaw Backlash (ax, ay): 0.2 deg
  • Gripper Jaw Backlash (Sz): 0.05 mm
  • Repetition Accuracy: 0.03 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Gripper Function: Parallel

Read more

  • Design: Twin Piston, Guidance, Piston Gate Valve, T-Shape, Rack and Pinion
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 3 bar, 8 bar
  • Max. Operating Frequency: 1 Hz
  • Min. Opening Time: 430 ms at 0.6 MPa (6 bar, 87 psi)
  • Min. Closing Time: 430 ms at 0.6 MPa (6 bar, 87 psi)
  • Max. Mass per External Gripper Finger: 420 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Ambient Temperature: 5°C to 60°C
  • Total Gripping Force (Opening): 1038 N at 0.6 MPa (6 bar, 87 psi)
  • Total Gripping Force (Closing): 1216 N at 0.6 MPa (6 bar, 87 psi)
  • Gripper Force per Jaw (Opening): 519 N at 0.6 MPa (6 bar, 87 psi)
  • Gripper Force per Jaw (Closing): 608 N at 0.6 MPa (6 bar, 87 psi)
  • Mass Moment of Inertia: 118.3 kgcm²
  • Max. Force on Gripper Jaw (Static): 2500 N
  • Max. Torque at Gripper (Mx, My, Mz Static): 125 Nm, 80 Nm, 100 Nm
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 4165 g
  • Type of Mounting: Via Female Thread and Centring Sleeve, Via Through-Hole and Centring Sleeve
  • Pneumatic Connection: M5
  • Material: RoHS-Compliant
  • Housing Material: Smooth-Anodised Wrought Aluminium Alloy
  • Gripper Jaws Material: Hardened Steel


Product

Manufacturer Material ID -
HGPL-40-60-A-B
Net Weight -
0.00kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£1,944.84
