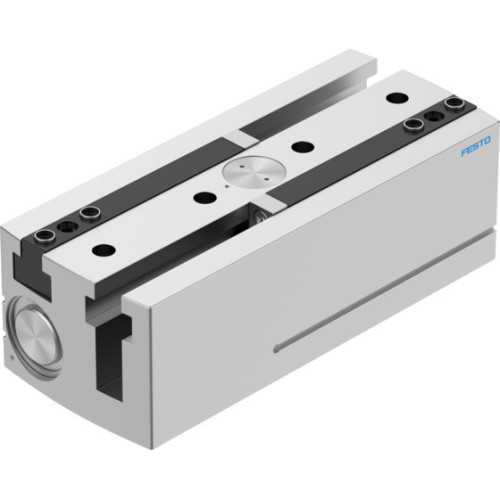

HGPL-63-150-A-B Parallel gripper

Manufacturer's No: HGPL-63-150-A-B     Manufacturer: Festo
HGPL-63-150-A-B Parallel gripper

Availability On Request

£5,840.88
  • Model: HGPL-63-150-A-B
  • Gripper Size: 63
  • Stroke per Gripper Jaws: 150 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Max. Angular Gripper Jaw Backlash (ax, ay): 0.2 deg
  • Max. Gripper Jaw Backlash (Sz): 0.05 mm
  • Repetition Accuracy: 0.03 mm
  • Number of Gripper Jaws: 2
  • Drive System: Pneumatic
  • Gripper Function: Parallel

Read more

  • Gripper Force Backup: None
  • Design: Twin Piston, Guidance, Piston Gate Valve, T-Shape, Rack and Pinion
  • Position Detection: Via Proximity Switch
  • Operating Pressure: 3 bar, 8 bar
  • Max. Operating Frequency: 1 Hz
  • Min. Opening Time at 0.6 MPa: 1020 ms
  • Min. Closing Time at 0.6 MPa: 850 ms
  • Max. Mass per External Gripper Finger: 940 g
  • Operating Medium: Compressed Air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class CRC: 2 - Moderate Corrosion Stress
  • LABS (PWIS) Conformity: VDMA24364-B1/B2-L
  • Ambient Temperature: 5°C to 60°C
  • Total Gripping Force: 2466 N (Opening), 2742 N (Closing)
  • Gripper Force per Gripper Jaw: 1233 N (Opening), 1371 N (Closing)
  • Mass Moment of Inertia: 2247.54 kgcm²
  • Max. Force on Gripper Jaw Fz Static: 9000 N
  • Max. Torque at Gripper: 300 Nm (Mx), 200 Nm (My), 250 Nm (Mz) Static
  • Lubrication Interval for Guide Components: 5 years
  • Product Weight: 18100 g
  • Type of Mounting: Via Female Thread and Centring Sleeve, Via Through-Hole and Centring Sleeve
  • Pneumatic Connection: G1/8
  • Material: RoHS-Compliant, Smooth-Anodised Wrought Aluminium Alloy (Housing), Hardened Steel (Gripper Jaws)


Product

Manufacturer Material ID -
HGPL-63-150-A-B
Net Weight -
0.02kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
DE
UNSPSC -
30102206
Festo

Availability On Request

£5,840.88
