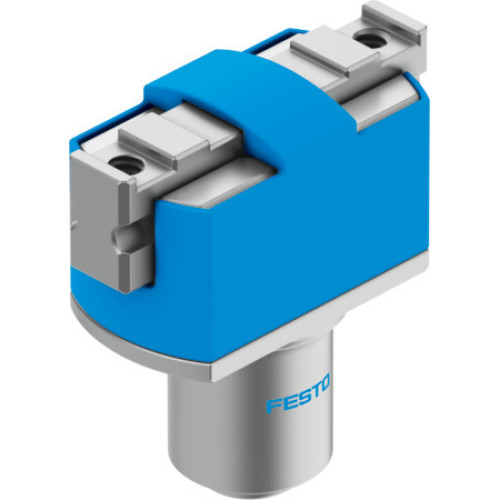

HGPM-08-EO-G8 Parallel gripper

Manufacturer's No: HGPM-08-EO-G8     Manufacturer: Festo
HGPM-08-EO-G8 Parallel gripper

Availability Back Order

£246.91
  • Model: HGPM-08-EO-G8 Parallel Gripper with clamping spigot
  • Size: 8
  • Gripper Stroke: 2 mm per jaw
  • Max. Replacement Accuracy: 0.2 mm
  • Rotationally Symmetrical: 0.15 mm
  • Gripper Repetition Accuracy: <= 0.05 mm
  • Gripper Jaws: 2
  • Drive System: Pneumatic, Single-acting
  • Gripper Function: Parallel
  • Design: Wedge-shaped drive

Read more

  • Operating Pressure: 4 BAR, 8 BAR
  • Gripper Operating Frequency: 4 HZ
  • Gripper Opening Time: 4.9 MS at 0.6 MPa
  • Gripper Closing Time: 2.3 MS at 0.6 MPa
  • Gripper Force: 16 N total opening force, 8 N per jaw closing force
  • Mass Per External Gripper Finger: 5 g
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 1 - Low corrosion stress
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • Ambient Temperature: 5°C to 60°C
  • Mass Moment of Inertia: 0.00573 kgcm²
  • Max. Force on Gripper Jaw: 10 N
  • Max. Torque at Gripper: 0.1 Nm in all directions
  • Product Weight: 11 g
  • Type of Mounting: Clamped
  • Pneumatic Connection: M3
  • Materials: RoHS-compliant, Cover Cap - POM, Housing - Anodised Wrought Aluminium Alloy, Gripper Jaws - High-alloy Steel


Product

Manufacturer Material ID -
HGPM-08-EO-G8
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
