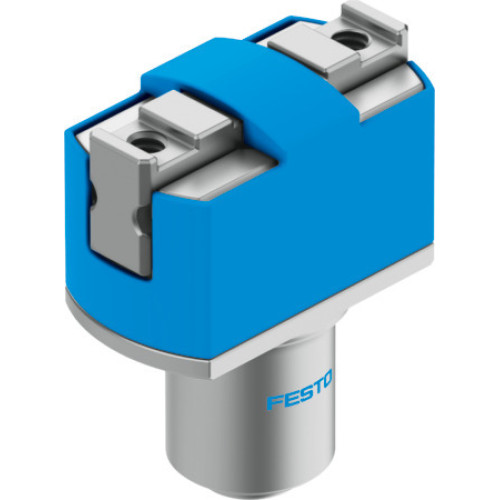

HGPM-08-EZ-G8 Parallel gripper

Manufacturer's No: HGPM-08-EZ-G8     Manufacturer: Festo
HGPM-08-EZ-G8 Parallel gripper

Availability On Request

£246.91
  • Model: HGPM-08-EZ-G8 Parallel Gripper
  • Size: 8
  • Gripper Stroke: 2mm
  • Max. Replacement Accuracy: 0.2mm
  • Rotationally Symmetrical: 0.15mm
  • Gripper Repetition Accuracy: <= 0.05mm
  • Gripper Jaws: 2
  • Drive System: Pneumatic
  • Operating Pressure: 4 BAR, 8 BAR
  • Gripper Force: 16N (closing), 8N per jaw (opening)

Read more

  • Gripper Type: Parallel
  • Gripper Design: Wedge-shaped Drive
  • Gripper Mass: 11g
  • Gripper Material: High-alloy steel
  • Gripper Housing Material: Anodised Wrought Aluminium Alloy
  • Gripper Cover Cap Material: POM
  • Mounting Type: Clamped
  • Pneumatic Connection: M3
  • Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
  • Corrosion Resistance Class: CRC 1 - Low corrosion stress
  • Ambient Temperature: 5°C to 60°C
  • Max. Operating Frequency: 4Hz
  • Min. Opening Time: 1.9ms at 0.6MPa
  • Min. Closing Time: 4.1ms at 0.6MPa
  • Mass Moment of Inertia: 0.00573KgC
  • Max. Force on Gripper Jaw: 10N
  • Max. Torque at Gripper: 0.1Nm (Mx, My, Mz static)
  • LABS (PWIS) Conformity: VDMA24364-B2-L
  • RoHS-compliant materials
  • Note: Lubricated operation possible, but lubricated operation always required.


Product

Manufacturer Material ID -
HGPM-08-EZ-G8
Net Weight -
0.10kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
Festo

Availability On Request

£246.91
