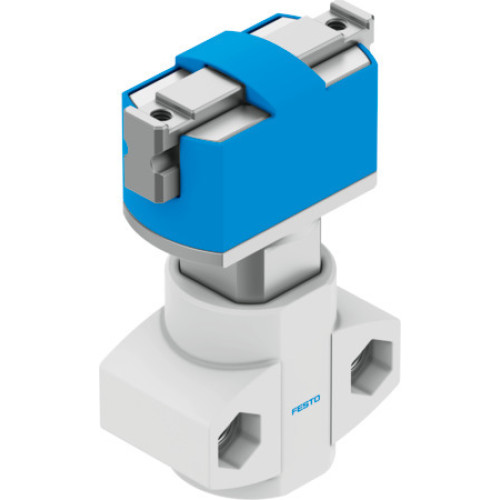

HGPM-12-EO-G6 Parallel gripper

Manufacturer's No: HGPM-12-EO-G6     Manufacturer: Festo
HGPM-12-EO-G6 Parallel gripper

Availability On Request

£394.86
  • Model: HGPM-12-EO-G6 Parallel Gripper with Micro Stroke Compensation
  • Size: 12
  • Stroke per Gripper Jaw: 3 mm
  • Max. Replacement Accuracy: 0.2 mm
  • Repetition Accuracy: <= 0.05 mm
  • Gripper Fingers: 2
  • Drive System: Pneumatic
  • Gripper Function: Parallel
  • Design: Wedge-shaped Drive
  • Operating Pressure: 4 BAR (Min), 8 BAR (Max)

Read more

  • Gripper Force: 27 N (Total), 13.5 N per Gripper Jaw
  • Max. Operating Frequency: 4 HZ
  • Min. Opening Time: 11 MS at 0.6 MPa
  • Min. Closing Time: 3.7 MS at 0.6 MPa
  • Gripper Mass: 62 g
  • Material: Anodised Wrought Aluminium Alloy Housing, High-alloy Steel Gripper Jaws
  • Mounting: With Through-hole
  • Pneumatic Connection: M3
  • Operating Temperature: 5°C (Min), 60°C (Max)
  • Corrosion Resistance: Low Corrosion Stress (CRC: 1)
  • Compliance: RoHS, VDMA24364-B2-L
  • Spring Force of Stroke Compensator: 10 N (Min), 23 N (Max)
  • Mass Moment of Inertia: 0.06674 kgcm²
  • Max. Force on Gripper Jaw: 30 N
  • Max. Torque at Gripper: 0.5 Nm (X, Y, Z Static)
  • Gripper Backlash: 0.03 mm (Sz), 0.5° (Ax, Ay)
  • Operating Medium: Compressed Air (ISO 8573-1:2010 [7:4:4])
  • Lubrication: Lubricated Operation Possible
  • Gripper Symbol: 991897


Product

Manufacturer Material ID -
HGPM-12-EO-G6
Net Weight -
0.16kg

Additional Product Information

Commodity Code -
84798997
Country of Origin -
IT
UNSPSC -
30102206
